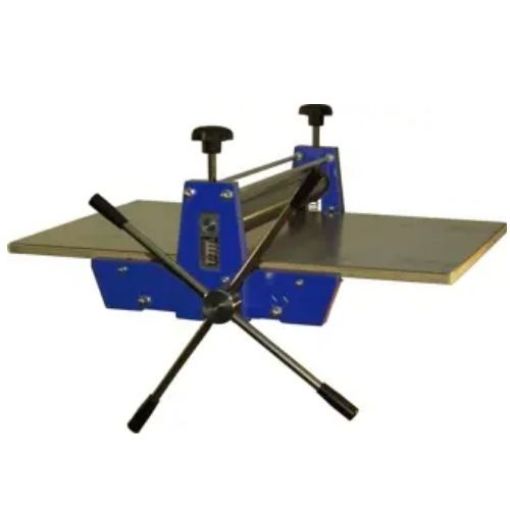

    Abig Printing Press

    Printing Press for relief and gravure printing like Lino, woodcuts, erasures etc.. Variable pressure can be applied to the lower roll by 2.2:1 gearbox with the cross-like handle, this reduces your hand-power to nearly a third. With two star-shaped handles the pressure of the upper roll can be adjusted smoothly. On the pressure-stable Multiplex Plate the print is put. With a pre-setting thus many continous printings can be done. Suitable for sizes up to DIN A2.

    Technical information:
  • Printing Press, Upper Roll / Lower Roll Ø 80mm
  • Width 500 mm,
  • Length of printing table 700 mm,
  • Gearbox, ratio 2.2:1 on lower roll with cross-like handle,
  • Adjustable pressure directly to upper roll by star-shaped handles on each end up to 1000 kg
  • Passage upper/lower roll 18 mm ( on special request up to 40 mm),
  • Printing plate Multiplex with 2,5mm zinc plated steel sheet
  • Mounted on plywood, 22 mm thick,
  • Printing felt 490x900 mm, 5 mm thick incl.

  • Lead time for this special order is approximately 3 weeks
    SKU: ABIG 172500
    Availability: In stock
