    ElecFreaks IOT:bit for Micro:bit

    Manufacturer: Elecfreaks

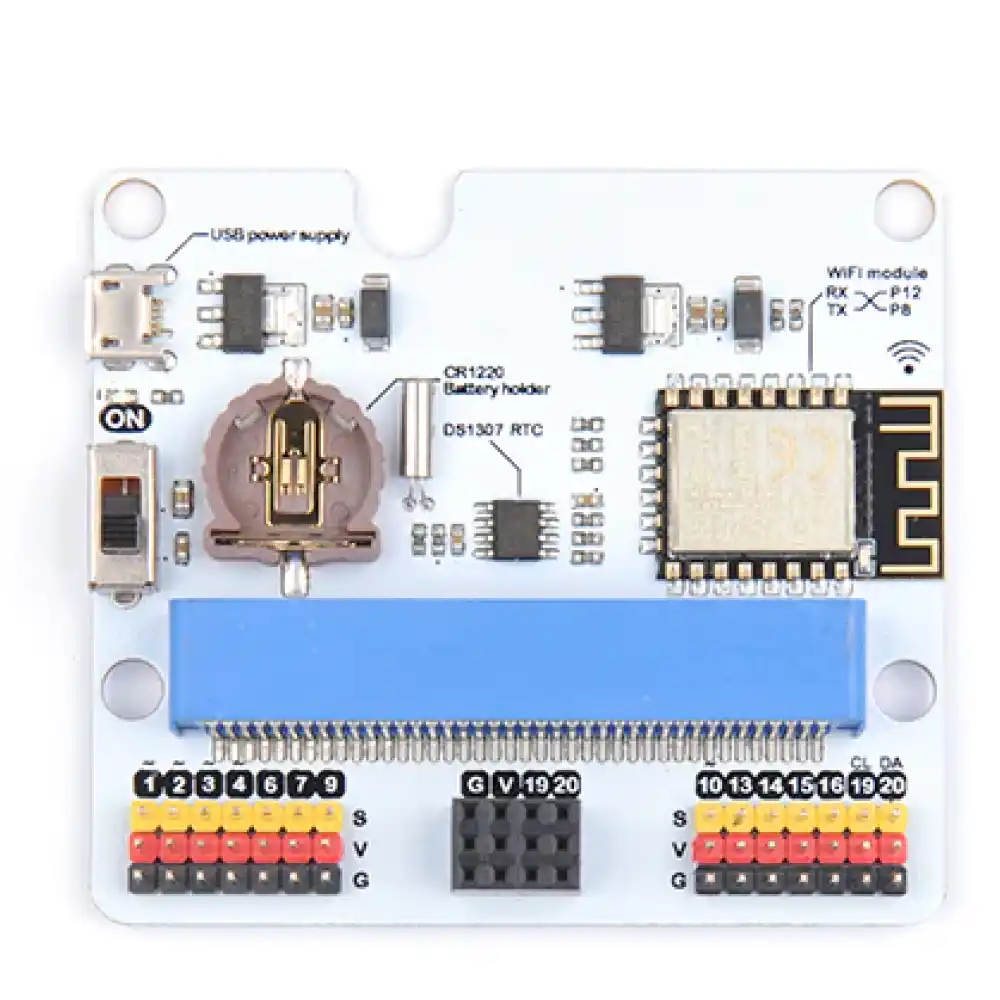

    IoT:bit is an expansion board based on IoT micro bit. Iot boards uses ESP8266 as a WIFI expansion board and serial port to communicate with micro:bit. It also has extended all available IO ports of the micro:bit which is led by GVS and you can extend various 3V E-blocks as LED, photosensitive, and servo by using it. At the same time, the IoT:bit with an on-board buzzer for outside sound and an on-board RTC clock for timing without a power supply. Let's create your own IoT micro bit by makecode!

    IoT:Bit: A RELIABLE TOOL TO ESTABLISH CONNECTION ACROSS DEVICES The IoT boards can help anyone fully grasp the digital apparatus of computers. Establishing interconnected networks amongst devices can be crucial in data analysis. IoT-based components are often used to speed up this task for a micro bit. IoT bit is a device that works as an internet extension for a micro bit. It is applied on circuit boards to improve the means of productivity by creating valid communication with the micro bit. IoT bit is a very compact tool that is made with complicated circuitry within itself. Anyone who wishes a reliable internet WIFI extension board for their micro bit should try out this component. Various sorts of tasks done by them can be improved manyfold through this seemingly minuscule module.

    DESIGNED WITH A VARIETY OF FEATURES The IoT-based module is equipped with many handy features that can ensure the efficiency of the micro bit. The IoT bit uses an ESP8266 as a board for WIFI expansion for data transactions through the micro bit. Led by GVS, the board also has extended IO ports for the micro bit, which lets you add a variety of other parts. The onboard buzzer can be triggered from the outside, and the RTC clock within can stay functional even without a power supply. The IoT bit also has an earphone jack and an integrated buzzer. The design is very simplistic compared to the functions, as you can construct them any way you please. The four LEGO-like holes make them very adaptable when used in a micro bit.

    RELIABLE HARDWARE The IoT:bit is a valuable component that itself is made out of smaller components. The hardware of any electrical entity can be deemed very important. Through the micro bit, the direct current is supplied via a USB at five volts. The expectation for maximum current is around 800mA, which is appropriate to keep the micro bit functional. The hardware stays operational from -25 to 80 degrees Celsius. The WIFI module used for the micro bit is labeled ESP8266. The ESP12F is very reliable as it is widely used in components similar to IoT bit. The passive buzzer is worth mentioning too. The RTC timing mechanics lets the device memorize the pace of time even after cutting off the power supply of the micro bit. RTC battery for the micro bit is something you can add in yourself. The battery requires a CR1220 cell. The coding port is a serial port in the micro bit that can delineate the IO slot.

    EASY TO INSTALL & ACCEPTABLE SIZE Adding components to a micro bit can be difficult as it is a miniature computer. The IoT boards are very sizable addition to the micro bit. It has a surface area of fewer than 50 centimeters and is 23 millimeters in depth. The printed circuit board is an essential part of the entire system. The PCB thickness is about 1.5mm. IoT bit has four adaptable slots, which let them get attached to the micro bit. Each of these holes is 2.4mm in diameter.

    INTERPHASE VARIABLES There is much to discuss a variety of functions visible on the interphase of IoT bit. The micro bit you use will probably have lots of potential in it, which you could not utilize because of not having the right component. IoT bit has a GVS leaded function had grants access to the electronic building module and also a functional 12C communication device. No need to reset the time every time you start the micro bit because of the RTC timing system.

    FEATURES
  • Integrated ESP12F WiFi、RTC and passive buzzer module
  • Extended most IO ports by GVS
  • Silk-screen indication onboard main components
  • Separately lead IIC interface, directly plug in OLED, BME280 and IIC, etc
  • Integrated buzzer and earphone jack
  • Adaptive for LEGO (4 standard spacing fixed holes)
  • SKU: EF03426
    Availability: 13 in stock
    €16.95
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    DIMENSIONS

    microbit online



    SPECIFICATION

    ItemsParametersRemarks

    NameELECFREAKS iot:bit for micro:bit-
    SKUEF03426-
    DC supplyUSB-5V-
    Maximum power current800mA-
    Operation temperature-25~80℃-
    WIFI moduleESP8266ESP12F
    BuzzerPassive buzzer-
    RTC timingDS1307 RTC-
    RTC timing batteryCR1220 button cellEquipped by yourself
    Lead outNot all-
    port leadSerial port can map the IO portCoding
    I2C port lead19、20 pinOnly for I2C pin
    SPI port lead14、15 pinfor common IO
    Size71.00mm X 63.00mmWithout packing
    Net weight30.00gWithout packing



    SIZE & INSTALLATION

    Product size:71mm x 63mm x 23mm
    PCB thickness:1.5mm
    Hole diameter:2.4mm



    PARAMETERS

    Pin interface drawing
    microbit online
    Introduction of main module
    microbit online
    microbit online
    microbit online



    ASSEMBLY STEPS FOR IoT:bit

    microbit online



    SOFTWARE SUPPORT

    Coding:Makecode/Micropython/JavaScript/


    Makecode BLOCK

    Coding developed by Microsoft and mainly published by micro:bit official.
    https://makecode.microbit.org
    microbit online

    JavaScript

    Click on JavaScript of the makecode for JavaScript coding.
    https://makecode.microbit.org
    microbit online

    MicroPython

    Using MU for advanced coding methodMicroPython
    https://codewith.mu/
    microbit online
