Elevation of Plane

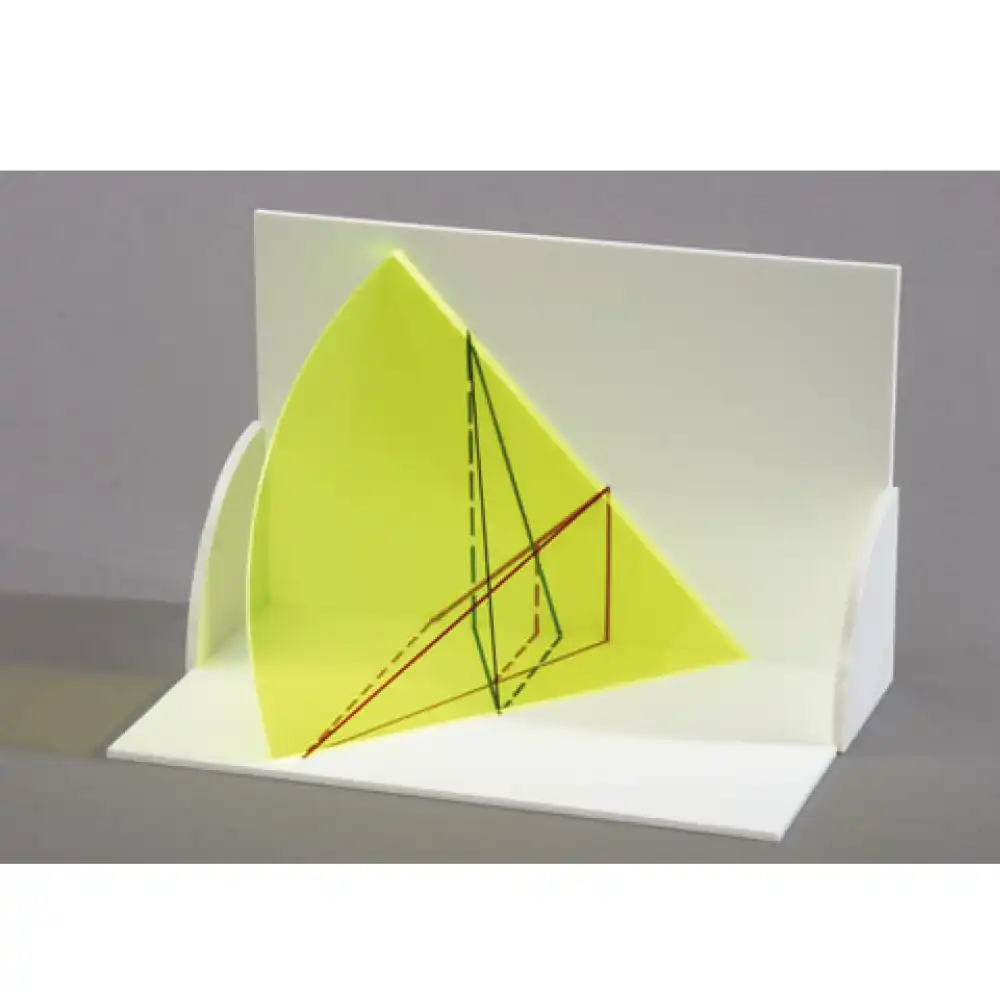

The Gunter Herrmann Elevation of Plane model is a meticulously crafted and accurate educational tool for understanding and visualizing the principles of elevation in geometry. This model showcases a three-dimensional model for elevation of two coplanar straight lines. With its precise design and high-quality construction, the Gunter Herrmann Elevation of Plane model is an invaluable resource for students, teachers, and anyone interested in studying and exploring geometric concepts.

SKU: GM 107

Availability: Out of stock

€62.00
