FT Indexed Line with 2 matching Stations 24v

Product Description:

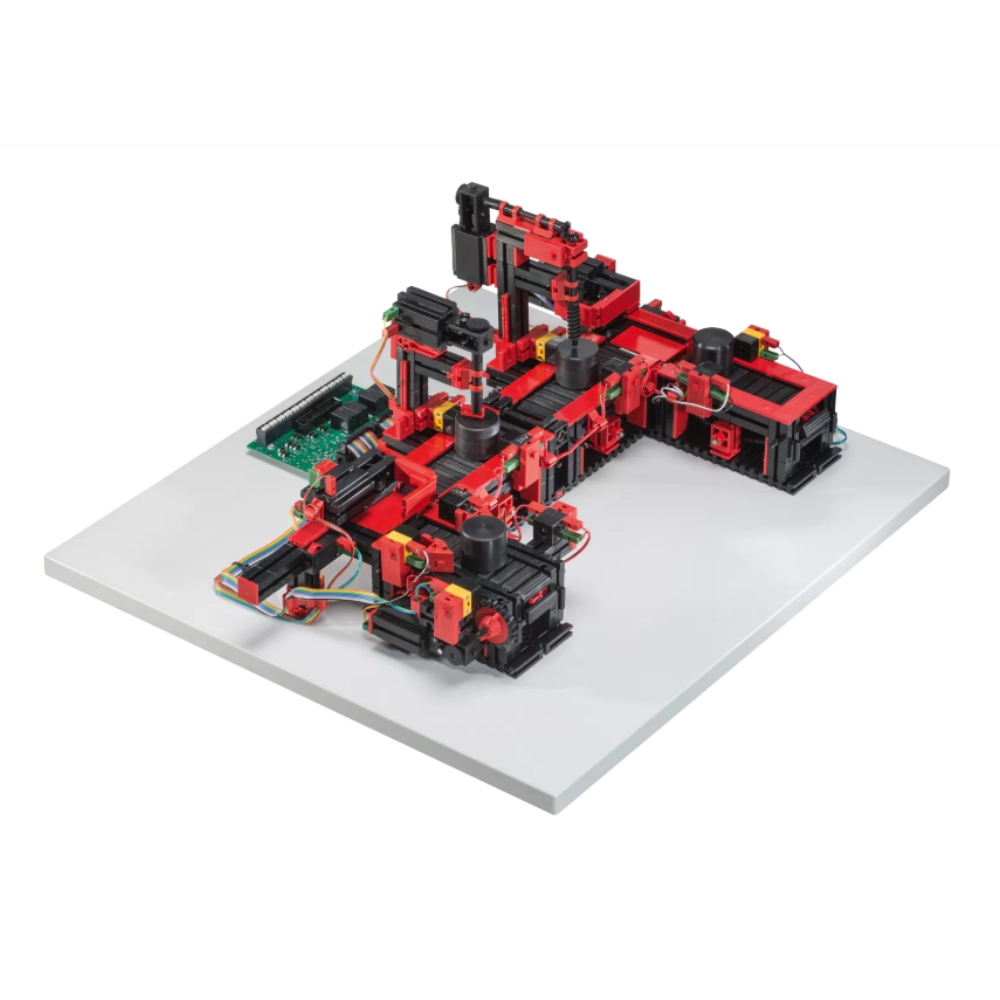

The Indexed Line with Two Machining Stations 24V provides a realistic and engaging environment for training in industrial automation processes. The conveyor line efficiently integrates milling and drilling stations, simulating real-world machining operations. Its U-shaped design optimizes material handling workflows and is compatible with the "3-axis robot with gripper" training model for enhanced functionality.

Key Features:

• Milling and Drilling Stations: Simulates common machining operations for hands-on learning.
• U-Shaped Conveyor Line: Includes four conveyor belts for efficient material flow.

Control System:
The model is designed for integration with a 24V PLC control system and includes a circuit board with relays for reversing motor directions. Inputs and outputs are easily connected via a 26-pin jack plug or series terminals with push-in connectors for flexibility and ease of use.

Specifications:

• Digital Inputs: 9
• Outputs: 10 (24V)

Why Choose the Indexed Line with Two Machining Stations 24V?
This pre-assembled and stable training model offers a practical way to explore machining and material handling processes in industrial automation. Its modular design, compatibility with other training systems, and realistic simulation make it an invaluable tool for education and training programs in automation and manufacturing.

Content:

• 4x Conveyor belt
• 8x XS motor (DC motor)
• 4x Push button (limit switch)
• 5x Phototransistor
• 5x LED light barrier

Documents for Downloading:

Occupancy Plan

Technical Data Sheet Phototransistor

Technical Data Sheet Mini Push-button
