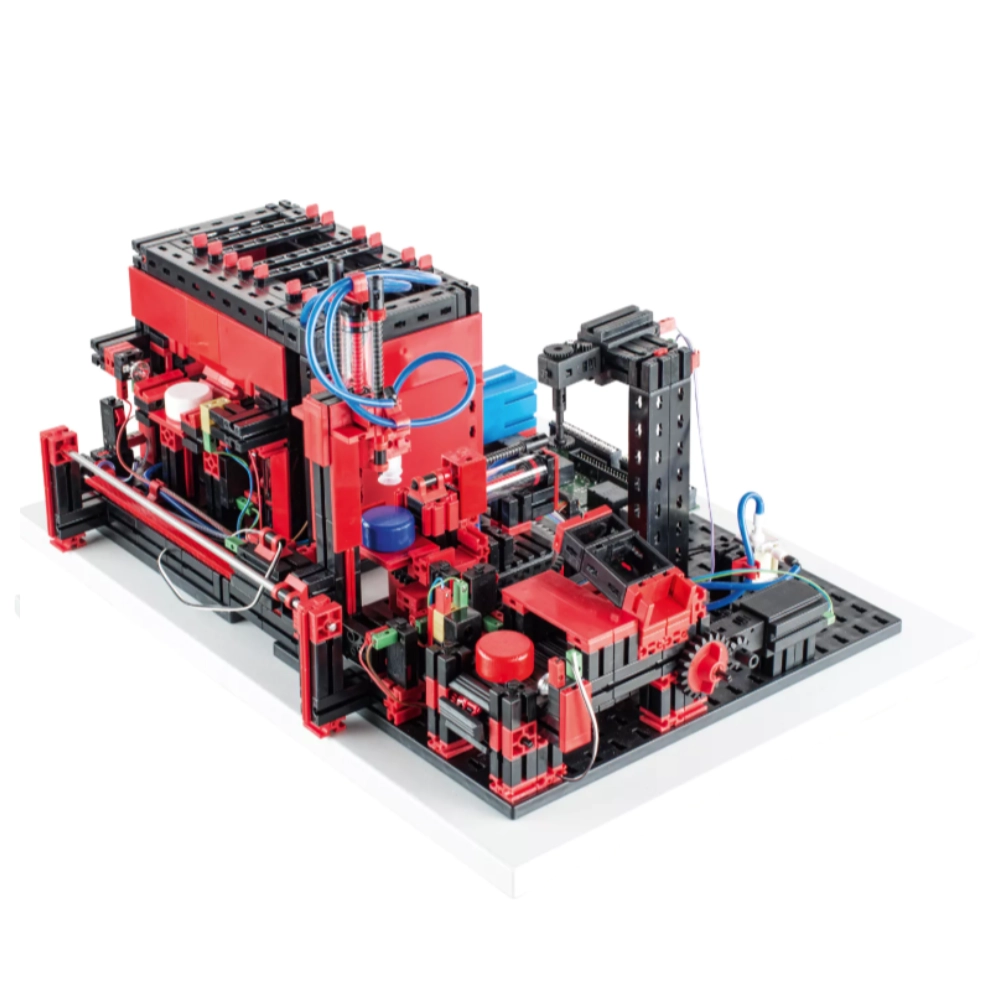

FT Multi Working Station with Furnace 24v

Product Description:

The fischertechnik Multi Working Station with Furnace 24V is a robust and realistic training model for exploring industrial automation processes. This model demonstrates key workflows, including material processing, transfer, and handling, making it an essential tool for vocational training and industrial demonstrations.

Key Features:

• Furnace with Pneumatic Sliding Door: Simulates heat-based processing with an automated door for realistic operation.
• Processing Station: Includes a pneumatic transfer unit with a vacuum gripper, a rotary cutter, and a conveyor belt for efficient material handling.

Control System:
This model is designed to integrate with a 24V PLC control system and features a circuit board equipped with relays for reversing motor directions. Inputs and outputs are easily connected via a 26-pin jack plug or series terminals with push-in connectors for flexibility and straightforward setup.

Specifications:

• Power Requirements: Current consumption: approximately 1.6A
• Digital Inputs: 9
• Outputs: 14 (24V)

Why Choose the fischertechnik Multi Working Station with Furnace 24V?
This pre-assembled training model offers a hands-on approach to learning industrial automation processes, featuring realistic components and modular functionality. Its PLC compatibility, robust design, and engaging setup make it a valuable addition to educational and training environments focused on modern automation workflows.

Content:

• 4x Mini motor (DC motor)
• 6x Push button (limit switch)
• 2x Phototransistor
• 2x LED light barrier
• 4x Solenoid valve
• Compressor

Documents for Downloading:

Occupancy plan

Technical Data Sheet Mini Push-button

Technical Data Sheet Phototransistor
