Fischertechnik Production Line 24V

Product Description

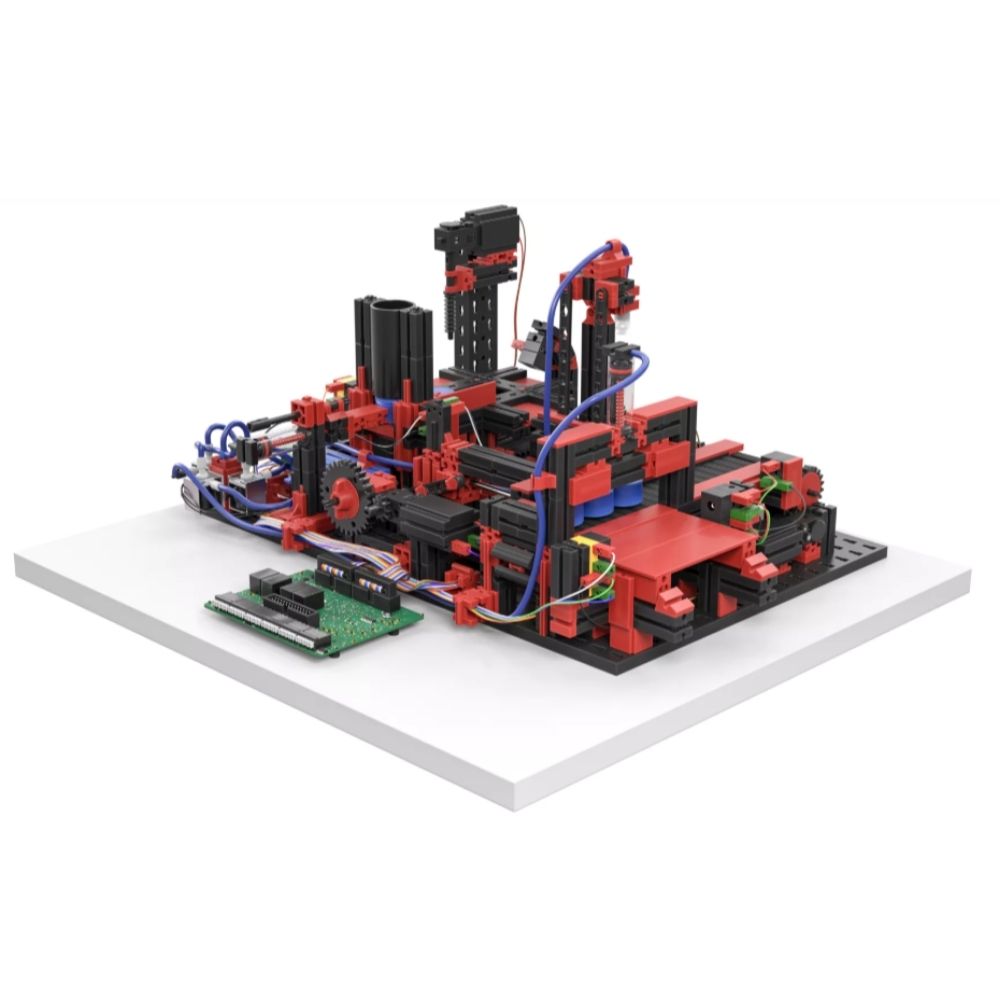

The Fischertechnik Production Line 24V simulates a complete series of linked industrial manufacturing processes and provides a realistic hands-on environment for PLC programming, automation engineering, and industrial process training.

At the beginning of the process, workpieces are loaded from a magazine onto a rotary indexing table with four stations using a pneumatic slider. The rotary indexing table transports the workpieces step-by-step through two processing stations, including drilling and welding operations.

At the final station of the rotary indexing table, a vacuum suction gripper removes the processed workpieces and places them onto a conveyor belt. The conveyor transports the workpieces to the palletizing station, where three workpieces are collected before being pushed onto a pallet.

The Production Line 24V is supplied as a fully assembled 24V training model mounted on a durable wooden baseboard, making it ideal for classroom demonstrations, vocational training, technical colleges, universities, and industrial automation workshops.

Comprehensive PLC Course Included

The included PLC programming course uses the physical model to create a practical and lasting learning experience. Learners are guided through the complete process of wiring, programming, and commissioning the system independently.

The didactic concept covers:

• Electrical wiring using circuit diagrams
• Flowchart creation
• PLC programming using Function Block Diagram (FBD)
• Programming using Structured Text (SCL/ST)
• System commissioning and troubleshooting
• Industrial automation workflows

The action-oriented training approach helps learners develop practical PLC programming skills while building confidence in solving complex industrial control tasks independently.

Control System

• 24V model prepared for PLC control
• PLC controller required for operation
• PLC requirements: 8 digital inputs and 10 digital outputs (24V)
• PLC programming course designed for Structured Text and Function Chart programming

Included Components

• 5x mini motor
• 5x push-button
• 5x LED light barriers
• 4x phototransistor
• 3x solenoid valve
• 4x pneumatic cylinder
• Compressor
• Conveyor belt

Important: A 24V PLC controller is absolutely essential for operation and is not included.
