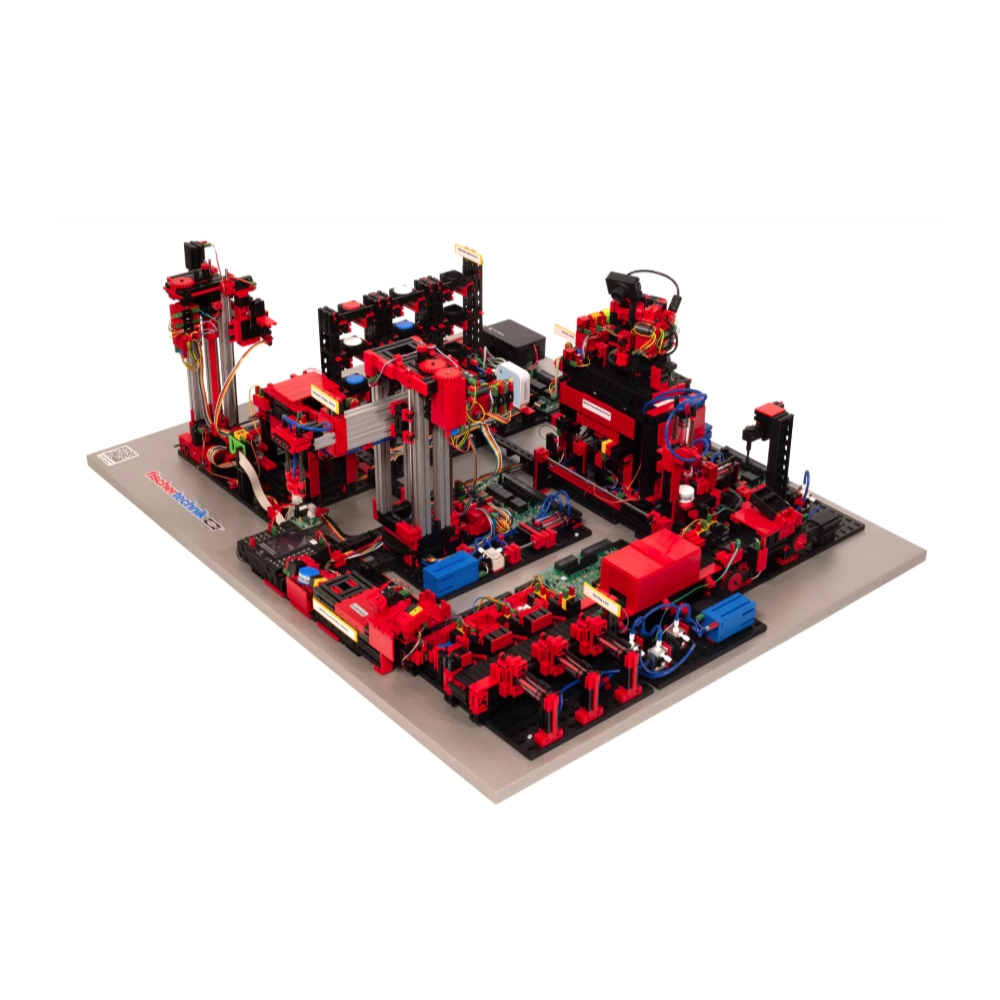

fischertechnik Training Factory Industry 4.0 in 24v

Product Description:

The Training Factory Industry 4.0 24V is a cutting-edge educational model designed for vocational schools, universities, and corporate training environments. It simulates key components of a digitized production process, including order handling, manufacturing, and delivery, making it an ideal tool for research, teaching, and Industry 4.0 training.

The system replicates real-world production workflows, enabling users to explore interconnected, digitized steps from material storage to final product delivery. Its dashboard provides real-time status updates, ensuring an interactive and practical learning experience.

Modules and Features:

• High-bay storage and retrieval system
• Vacuum gripper robot and multi-processing station with an oven
• Sorting line with advanced color detection
• Integrated environmental sensor for temperature, humidity, air pressure, and air quality monitoring
• Swiveling camera for comprehensive remote monitoring
• NFC-based workpiece tracking for enhanced process visibility

Control System:
The Training Factory is controlled via an external PLC (not included), utilizing a preconfigured example program in Structured Text (ST). Compatibility with various PLC brands ensures flexibility for custom solutions. The system includes 24V adapter boards that simplify integration and enable features such as:

• Speed control for encoder motors via PWM
• Enhanced push/pull output stages for phototransistors and buttons

A fischertechnik TXT 4.0 controller powers the 9V-based components and interfaces seamlessly with the included Raspberry Pi. The IoT Gateway allows communication via MQTT and OPC-UA, offering further flexibility through optional cloud connections.

Software and Cloud:
The PLC control program, tailored for Siemens S7-1500, is freely accessible on the eLearning portal and GitHub, with resources for modification and adaptation to other PLC models. Users can connect to the fischertechnik cloud through an integrated WLAN router for real-time monitoring and control, compatible with Chrome and Firefox browsers.

Why Choose the Training Factory Industry 4.0 24V?
This system empowers users to explore and innovate within the framework of Industry 4.0, bridging theoretical knowledge with hands-on experience. Its modular design and cloud compatibility ensure adaptability to various educational and research needs, making it a future-proof investment for advanced learning.
