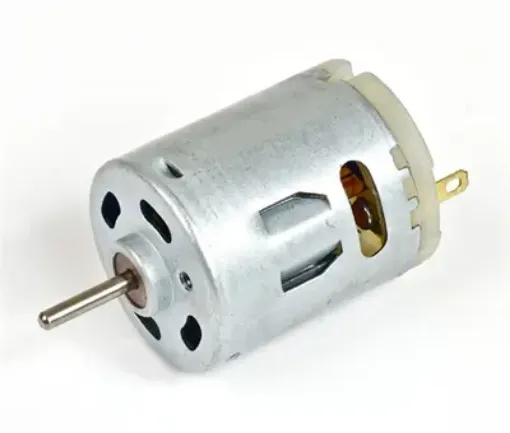

    High Power 12V DC Motor S365 (MM36)

    High torque 5 pole DC motor with wide operating range 12-24V. Suitable for water pumps, robotics etc. Rotation is counter-clockwise as viewed from shaft end.

  • Dimensions: L: 32.5 (exc. shaft) x 27.5mm dia.
  • Shaft: 12.8mm long x 2.3 dia.
  • Weight 52g approx.
  • Mounting holes 2 x M2.6 x 0.45 tapped.

  • RoHS compliant
  • Operating range: 12-24V (nominal 18V)
  • No load speed: 18000 RPM ±10%
  • No load current: 0.32A
  • Load speed: 14350 RPM ±8%
  • Current at max. efficiency: 1.3A
  • Rated load (with fan) 65g-cm
  • Output: 0.42W
  • Torque: 11.6g-cm
  • Stall torque: 55g-cm min.
  • Stall current: 1.4A max.
  • SKU: JP 450025
    Availability: 215 in stock
    €3.45
