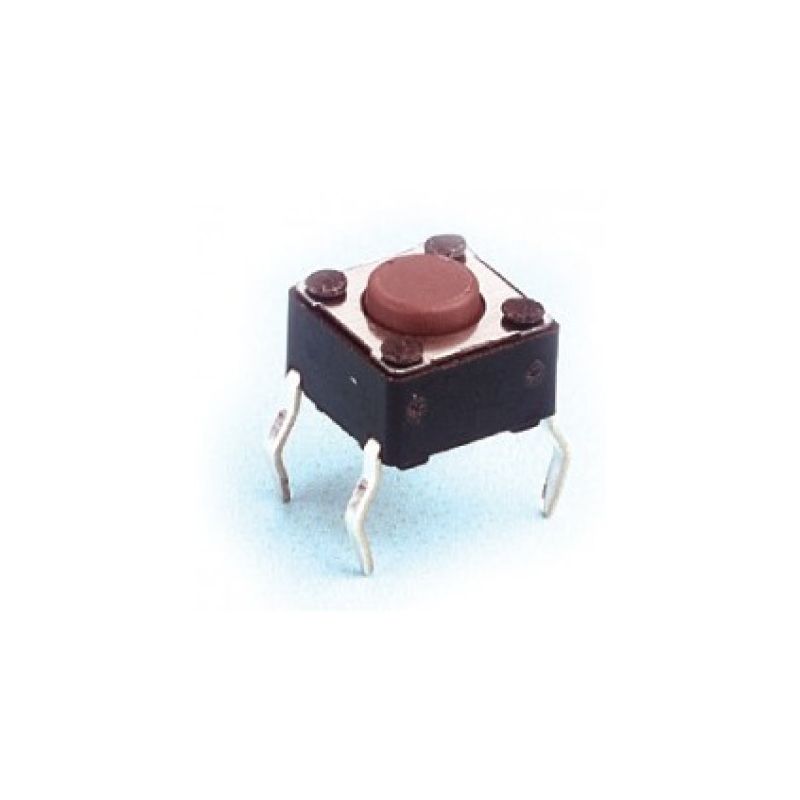

Kitronik Flat Profile Tact Switch

Manufacturer: Kitronik

Be the first to review this product

A low profile Miniature PCB Mount TACT Switch.

Single pole normally open contact.

Max voltage = 24V DC.

Max current = 50mA. L 6, W 6, H 4.3 mm.

L 6, W 6, H 4.3 mm.

This part is found in the Kitronik Inventors Kit

SKU: KI 3420

Availability: 9 in stock

€0.50

Qty:

i h

Click here to download datasheet
