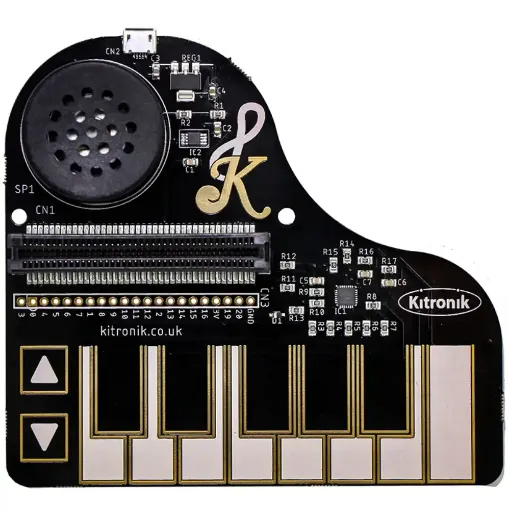

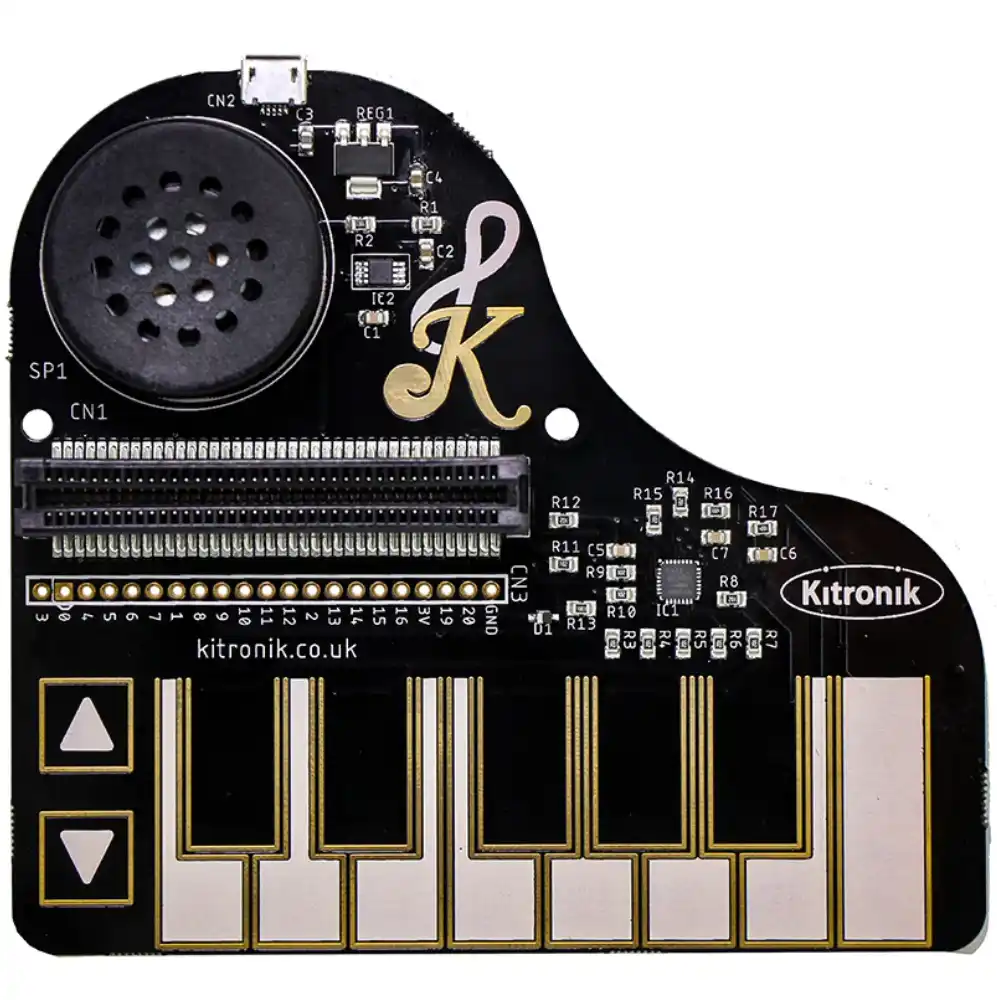

    Kitronik KLEF Piano for Microbit

    Manufacturer: Kitronik
    Compose a monophonic microbit musical masterpiece with the Kitronik :KLEF Piano for the BBC micro:bit. It features 15 capacitive touch pads, with 13 arranged as a single octave and 2 up down function buttons that can allow you to shift octaves.

    :KLEF also features; an onboard amplifier circuit for extra 'more', an onboard speaker, and an onboard edge connector that the micro:bit slots into.

    To use the Piano, the BBC micro:bit should be inserted firmly into the edge connector, either way around. If the Link Header is being used, the BBC micro:bit LED display should be facing the Piano keys. Kitronik has produced a MakeCode getting started guide which you can follow here.

    Power is provided via a 5V micro USB connector. The board then produces a regulated 3.3V supply fed into the 3V and GND connections to power the connected BBC micro:bit, removing the need to power the BBC micro:bit separately. This also powers the capacitive touch sensor IC and audio amplifier.

    The potential uses for the :KLEF Piano for the BBC micro:bit doesn't have to be just musical in nature. You can use the piano keys to transmit from the micro:bit attached to the board to other micro:bits over radio. And if that other microbit happened to be inserted into a :MOVE mini... Piano remote control! You can even take control of the :MOVE minis ZIP LEDs!

    Features:
  • Compose music using the micro:bit!
  • Learn to code and explore music at the same time.
  • Write code using the MakeCode, MicroPython, and Mu editors.
  • Use it as a control surface to trigger the sending of data via the microbits radio module.
  • Use it as a remote control for your Buggies/Robots.
  • It works with micro:bit V1 and micro:bit V2.

  • Dimensions:
  • Length: 100mm.
  • Width: 110mm.
  • PCB Thickness: 1.6mm.
  • Max Height (No micro:bit): 17.3mm.
  • Max Height (With micro:bit): 53.3mm.

  • SKU: KI 5631
    Availability: 4 in stock
    €23.95
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Product Resources / Datasheet

    :KLEF Online MakeCode Beginners Guide


    Demo Code for programming in MicroPython is available from GitHub.

    Products specifications
    MICRO:BIT
    Device TypeBoards, Modules & Sensors
    *
    *
    *
