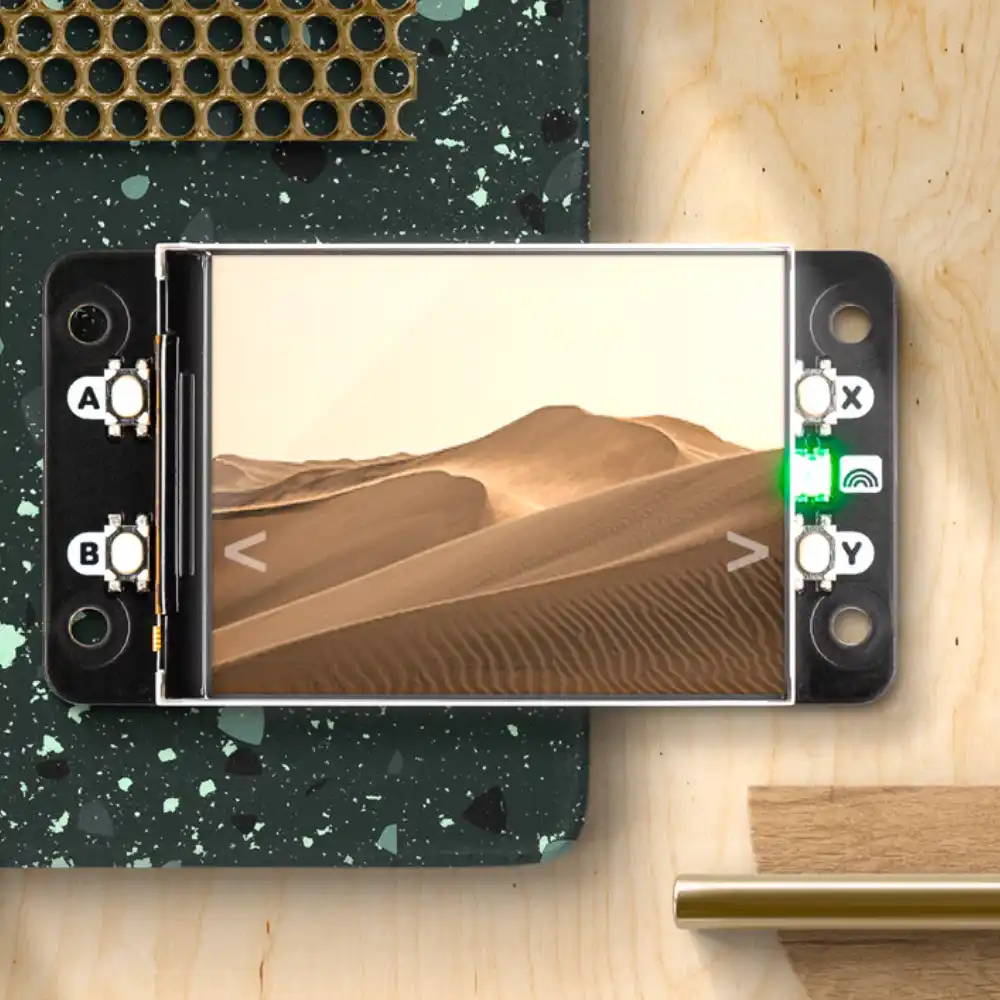

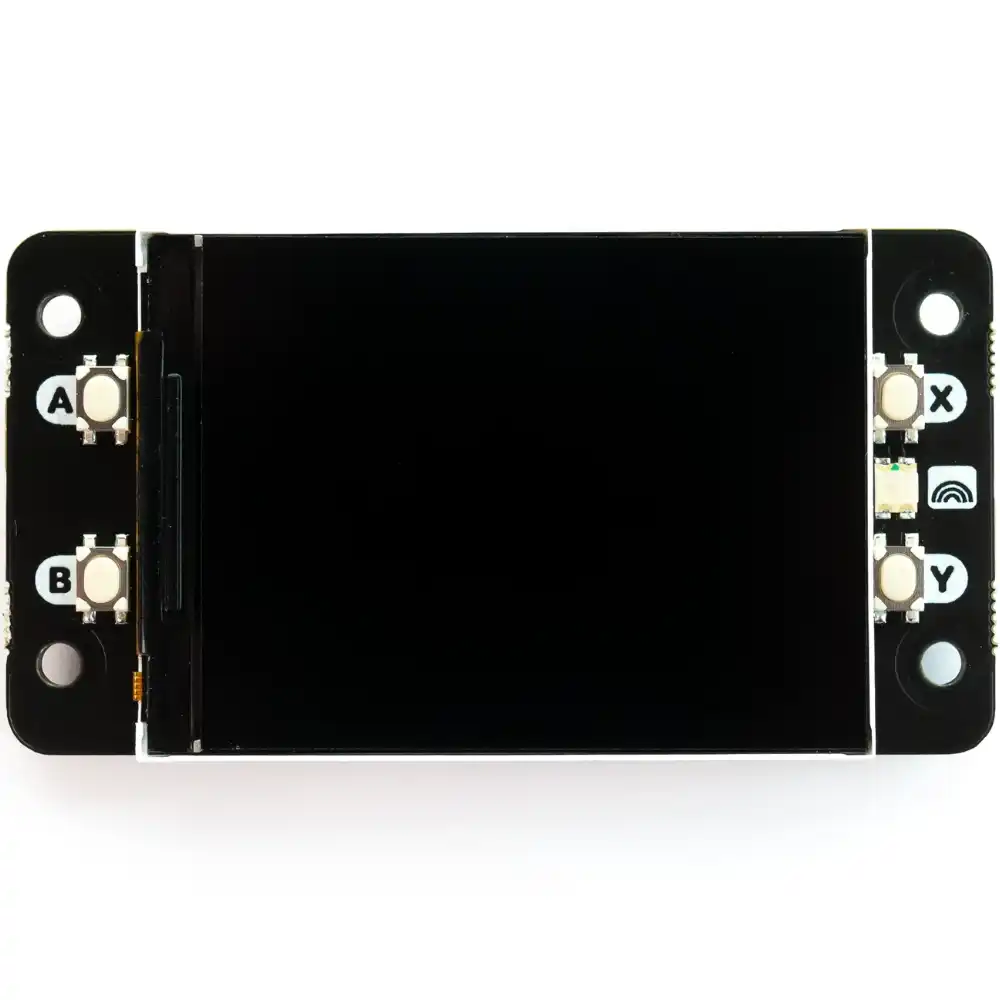

    Pimoroni Display HAT Mini for Raspberry Pi

    Manufacturer: Pimoroni
    A generous 2.0" (320 x 240) IPS LCD display for Raspberry Pi with lots of tasty baked in functionality.

    Display HAT Mini features a bright 18-bit capable 320x240 pixel display with vibrant colours and formidable IPS viewing angles, connected via SPI. It's got four tactile buttons for interacting with your Pi with your digits and a RGB LED for notifications. Pimoroni have also squeezed in a QwST connector (Qwiic / STEMMA QT) and a Breakout Garden header so it's a doddle to connect up different kinds of breakouts.

    It will work with any model of Pi with a 40 pin header, it goes with the Raspberry Pi Zero particularly well - Pimoroni have included a pair of standoffs so you can use to bolt HAT and Pi together to make a sturdy little unit. To accommodate the screen Display HAT Mini is a bit bigger than a standard mini HAT or pHAT - it's around 5mm taller than a Pi Zero (so a Mini HAT XL or a Mini HAT Pro, if you will).

    Display HAT Mini lets you turn a Raspberry Pi into a convenient IoT control panel, a tiny photo frame, digital art display or gif-box, or a desktop display for news headlines, tweets, or other info from online APIs. This screen is a handy 3:2 ratio, useful for retro gaming purposes!

    Features:
  • 2.0” 320x240 pixel IPS LCD screen, connected via SPI (~220 PPI, 65K colours)
  • 4 x tactile buttons
  • RGB LED
  • Qw/ST (Qwiic/STEMMA QT) connector
  • Breakout Garden / I2C header
  • Pre-soldered socket header for attaching to Raspberry Pi
  • Compatible with all models of Raspberry Pi with a 40 pin header.
  • Fully assembled
  • No soldering required (as long as your Pi has header pins attached).
  • Dimensions: approx 65.5mm x 35mm x 9mm (W x H x D, includes header and display). With a Pi Zero attached with standoffs, the total depth is 17mm.
  • Screen usable area: 40.8mm x 30.6mm (L x W)
  • Pinout
  • Schematic
  • Dimensional drawing
  • Display HAT Mini Python library
  • ST7789 Python library

  • Includes
  • Display HAT Mini
  • 2 x 10mm standoffs

  • Compatible with:
  • Raspberry Pi 5
  • Raspberry Pi 4
  • Raspberry Pi Zero(but needs Male 40-pin 2x20 HAT Header for Pi Zero)
  • SKU: PIM 589
    Availability: 6 in stock
    €26.95
