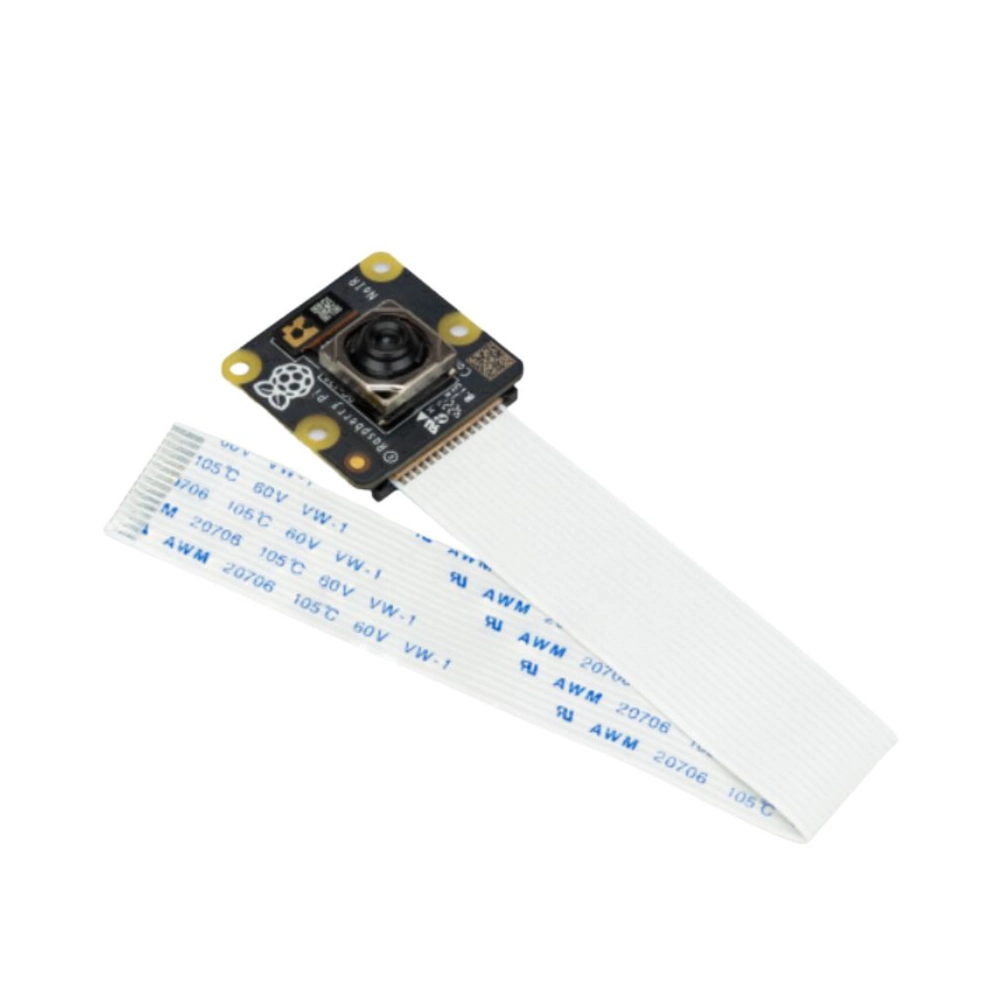

Raspberry Pi Camera Module 3 NoIR

The Raspberry Pi 5 includes two MIPI connectors designed for camera modules or displays. These connectors are more compact than those on previous Raspberry Pi models, so an adapter cable is required to connect your camera module.

Cable length: 200mm

These adapter cables feature a 22-pin, 0.5mm-pitch connector on one side for the Raspberry Pi 5, and a 15-pin, 1mm-pitch connector on the opposite side.

These camera cables DO NOT work with DSI displays.

The Raspberry Pi Zero 2 W is the latest addition to the Raspberry Pi Zero family, featuring a quad-core processor that delivers a 40% boost in single-threaded performance and up to 5x more multi-threaded performance compared to the original single-core Raspberry Pi Zero W.

Now available with a pre-soldered GPIO header, including a color-coded version – choose your preferred option before adding it to your cart!

As the successor to the groundbreaking Zero W, the Raspberry Pi Zero 2 W is a seamless drop-in replacement, maintaining the same form factor, connectors, and mounting holes. It's perfect for upgrading your existing projects!

For those starting fresh, we also offer a great-value starter kit that includes everything you need.

The Raspberry Pi Zero 2 W is powered by a quad-core 64-bit Arm Cortex-A53 CPU running at 1GHz, housed in the Raspberry Pi RP3A0 system-in-package (SiP). This SiP integrates a Broadcom BCM2710A1 die with 512MB of LPDDR2 SDRAM, significantly boosting the board's performance.

Continuing the legacy of its predecessor, the Raspberry Pi Zero 2 W features 2.4GHz 802.11 b/g/n wireless LAN, Bluetooth 4.2, and support for Bluetooth Low Energy (BLE), along with modular compliance certification.

Key features include a microSD card slot for the Raspberry Pi Operating System, a CSI-2 camera connector, a USB On-The-Go (OTG) port, and an unpopulated footprint for a HAT-compatible 40-pin GPIO header. Video output is provided via a mini HDMI port, with composite video output accessible through the board's test points if required.

The Zero 2 W is powered through a micro-USB socket, requiring a 5V 2.5A power supply, similar to previous models.

Sharing the same dimensions as the original Raspberry Pi Zero, the Raspberry Pi Zero 2 W fits into most existing Raspberry Pi Zero cases – be sure to check for compatibility markers. Our top pick is the FLIRC Zero case!

Your new Raspberry Pi Zero has its own camera port, but it's smaller than the one on the Raspberry Pi 4, so how do you connect your awesome Raspberry Pi Camera Module or High Quality Camera to it?

This little cable will sort you right out! It has a Zero-sized (22-pin) connection on one side, and the usual Camera Module (15-pin) connection on the other - allowing you to swap your Camera Module's cable for this one and plug it straight into your Raspberry Pi Zero.

It's 15cm end to end and as flexible and strong as you'll ever need, this will be perfect for your miniature camera project!

Raspberry Pi Zero & Camera module not included

Compatible with:

Raspberry Pi Zero

Introducing the Raspberry Pi AI Camera, a versatile camera module designed specifically for Raspberry Pi enthusiasts. This compact camera utilizes the advanced Sony IMX500 Intelligent Vision Sensor, featuring a 12-megapixel CMOS image sensor paired with on-board inferencing capabilities. This combination enables the creation of complex vision-based AI applications without the need for an external accelerator.

The AI Camera enhances captured images and videos with tensor metadata, allowing the Raspberry Pi's processor to handle other tasks efficiently. It supports tensor metadata through the libcamera and Picamera2 libraries, as well as the rpicam-apps application suite, making it accessible for beginners while providing advanced users with exceptional power and flexibility.

Compatible with all Raspberry Pi models featuring a CSI camera connection, the camera’s PCB design mirrors that of the Raspberry Pi Camera Module 3. However, its increased depth accommodates the larger IMX500 sensor and optical components. Included are two cables (15-pin and 22-pin) for seamless integration with all Raspberry Pi computers that have a CSI port, including the Raspberry Pi 5.



(Note: Raspberry Pi board not included.)

Lightweight, flexible and stable, this tripod is the ideal companion for the Raspberry Pi High Quality Camera.

Designed for versatility, the three flexible legs can stand securely on a desk or be wrapped around railings, poles, or other supports for creative positioning. The adjustable ball-joint head allows you to easily angle your camera for the perfect shot.

Featuring a standard 1/4"-20 mounting screw, the tripod connects securely to the Raspberry Pi High Quality Camera and is also compatible with a wide range of other devices, including action cameras such as GoPro.

Rubberised feet provide extra grip to prevent slipping, while the compact and lightweight design makes it easy to transport — perfect for classroom projects, workshops, or field use.

Compatible with:
Raspberry Pi High Quality Camera

The official Raspberry Pi High Quality Camera (HQ Camera) takes your Raspberry Pi imaging projects to the next level. Featuring a 12-megapixel Sony IMX477 sensor, interchangeable lens support, and an integrated aluminium tripod mount, this module delivers significantly higher resolution and improved sensitivity compared to the previous Camera Module v2.

To use this camera with a Raspberry Pi 5, you will need this adapter cable.

To use this camera with a Raspberry Pi Zero, you will need this adapter cable.

Please note: This module does not function without a lens. Compatible official lens options include:

High Quality 6mm Wide Camera Lens from Raspberry Pi

High Quality 16mm 10MP Telephoto Camera Lens from Raspberry Pi

The camera supports interchangeable C- and CS-mount lenses, offering maximum flexibility for different project requirements. A C-CS adapter is pre-fitted.
