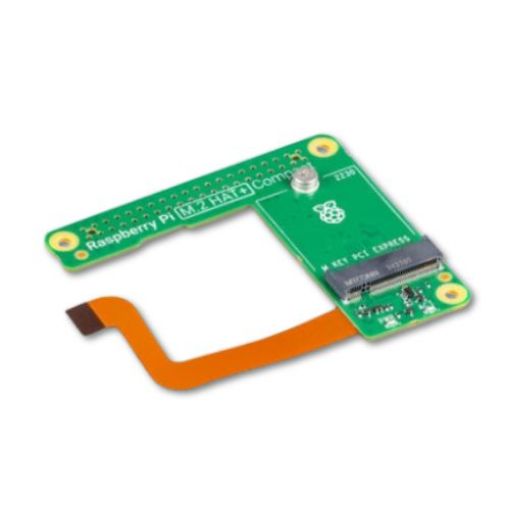

Raspberry Pi M.2 HAT+ (Compact)

The Raspberry Pi M.2 HAT+ enables you to connect M.2 peripherals such as NVMe drives and AI accelerators to Raspberry Pi 5’s PCIe 2.0 interface, supporting fast (up to 500 MB/s) data transfer to and from NVMe drives and other PCIe accessories.

Raspberry Pi 5’s single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5mm- pitch FPC connector; the M.2 HAT+ M Key is a mechanical adapter board that converts between this connector and a subset of the M.2 standard. It supports devices that have the M.2 M key edge connector, in the 2230 and 2242 form factors. It is capable of supplying up to 3A to connected M.2 devices.

The Raspberry Pi M.2 HAT+ conforms to the Raspberry Pi HAT+ specification and is autodetected by the latest Raspberry Pi software/firmware. It is supplied with a 16mm stacking header and threaded spacers, so it can be fitted to a Raspberry Pi 5 with the Raspberry Pi Active Cooler in place.

The Raspberry Pi Power over Ethernet HAT is a small accessory for the Raspberry Pi computer. It can only be used with the Raspberry Pi 4 Model B (launched June 2019) and the Raspberry Pi 3 Model B+ (launched March 2018). The PoE HAT allows you to power your Raspberry Pi using Power over Ethernet–enabled networks; for this product to be used, the network it is connected to needs to have power-sourcing equipment installed.

Supplied with this product:

Raspberry Pi PoE HAT

Mechanical spacers

Other hardware needed:

A Raspberry Pi 4 Model B or Raspberry Pi 3 Model B+

An Ethernet cable

Power-sourcing equipment for a 802.3af Power over Ethernet network

A 128x64 pixel, 2.15" LCD display with snazzy six-zone RGB backlight and six capacitive touch buttons. GFX HAT makes an ideal display and interface for your headless Pi projects.

GFX HAT riffs off the previous Display-O-Tron HAT (now discontinued), but gives you the flexibility of individual pixels, letting you display more complex graphics and real typefaces, while retaining the handy capacitive touch buttons for input/navigation.

Features:

128x64 pixel, 2.15" LCD display

Integrated diffuser/reflector assembly

Six-zone RGB LED backlight

SN3218 LED driver chip (I2C address 0x54)

Six capacitive touch buttons with white LEDs

Microchip CAP1166 capacitive touch/LED driver chip ((I2C address 0x2c)

Compatible with all 40-pin header Raspberry Pi models

Python library

Comes fully assembled

Compatible with:

Raspberry Pi 5

Raspberry Pi 4

Raspberry Pi 500+ is a premium computer built into a high-quality mechanical keyboard (UK Layout), redefining the compact PC experience for power users and enthusiasts.

Powered by the same quad-core 64-bit Arm processor and RP1 I/O controller found in Raspberry Pi 5, it also integrates a one-piece aluminium heatsink for improved thermal performance. This ensures your Raspberry Pi 500+ will run fast and smoothly even under heavy load, while delivering glorious dual 4K display output.

Raspberry Pi 500+ features 16GB of LPDDR4X-4267 SDRAM to handle the most memory-intensive workloads, and a pre-installed 256GB Raspberry Pi SSD for blazingly fast I/O performance. Clicky Gateron KS-33 Blue mechanical keyboard switches are paired with ergonomic low-profile keycaps and individually addressable RGB LEDs.

The Raspberry Pi 500+ combines a powerful computer with a premium mechanical keyboard, offering a sleek all-in-one solution for hobbyists, students, and professionals.

At its core is a quad-core 64-bit Arm Cortex-A76 processor, supported by the RP1 I/O controller and a solid aluminium heatsink to keep performance steady even during demanding tasks. With support for dual 4K displays, it’s perfect for everyday use such as browsing, document editing, video streaming, or coding in the Raspberry Pi OS environment.

Equipped with 16GB of LPDDR4X-4267 SDRAM and a pre-installed 256GB Raspberry Pi SSD, the Raspberry Pi 500+ delivers fast and responsive performance for memory-intensive projects. The keyboard is built with Gateron KS-33 Blue mechanical switches, ergonomic low-profile keycaps, and RGB backlighting, giving you both comfort and style while you work or play.

The Raspberry Pi Active Cooler provides an alternative cooling solution for users who wish to use their Raspberry Pi 5 under sustained heavy load without a case.

The Active Cooler combines a large metal heatsink with a high-quality variable-speed blower fan, powered and controlled via the fan connector on the Raspberry Pi 5, attached to the board via sprung pins into the dedicated pair of mounting holes.

As the heat from the Pi 5 CPU spreads across the heatsink body and fins, the blower fan pushes cool air over them to keep your Raspberry Pi 5 running at optimal thermal levels. The cooler uses thermal pads to create a solid thermal connection with the Raspberry Pi 5.

The fan is software-controlled, allowing it to remain off (and therefore silent) until temperatures reach the specified threshold.

Features

Compatible with Raspberry Pi 5

Large metal 'finned' heatsink combined with a high-quality blower fan

Fan fitting compatible with the Raspberry Pi 5 fan connector

Variable speed fan (software/temperature controlled)

Uses the Raspberry Pi 5 heatsink mount holes

Thermal pads included (pre-fitted)

Raspberry Pi not included

Compatible with:

Raspberry Pi 5
