Raspberry Pi 4 Model B - 4GB

This 175mm long GPIO (general purpose input/output) ribbon cable lets you extend the reach of your Raspberry Pi's pins, bridging them out to other boards or PCBs. The Raspberry Pi's GPIO can be used for all sorts: twiddling pins on or off, providing 3.3V or 5V power, communicating with I2C or SPI devices, and much more. This cable gives you a bit more flexibility in where you route those signals.

175mm long x 51mm wide

40 wires, 2x20 pin female connectors

Pin 1 is marked by the white/pink wire

Note: Be careful to connect this cable to your board the correct way around. You can't use it with a male header to connect to a HAT's female header, as the pins will be mirrored. You'll risk damaging both your board and your Raspberry Pi if you connect the cable incorrectly so, if in doubt, check the order of the pins on the connector with a multimeter before connecting things up!

Compatible with:

Raspberry Pi 4

Raspberry Pi 5

A generous 2.0" (320 x 240) IPS LCD display for Raspberry Pi with lots of tasty baked in functionality.

Display HAT Mini features a bright 18-bit capable 320x240 pixel display with vibrant colours and formidable IPS viewing angles, connected via SPI. It's got four tactile buttons for interacting with your Pi with your digits and a RGB LED for notifications. Pimoroni have also squeezed in a QwST connector (Qwiic / STEMMA QT) and a Breakout Garden header so it's a doddle to connect up different kinds of breakouts.

It will work with any model of Pi with a 40 pin header, it goes with the Raspberry Pi Zero particularly well - Pimoroni have included a pair of standoffs so you can use to bolt HAT and Pi together to make a sturdy little unit. To accommodate the screen Display HAT Mini is a bit bigger than a standard mini HAT or pHAT - it's around 5mm taller than a Pi Zero (so a Mini HAT XL or a Mini HAT Pro, if you will).

Display HAT Mini lets you turn a Raspberry Pi into a convenient IoT control panel, a tiny photo frame, digital art display or gif-box, or a desktop display for news headlines, tweets, or other info from online APIs. This screen is a handy 3:2 ratio, useful for retro gaming purposes!

Features:

2.0” 320x240 pixel IPS LCD screen, connected via SPI (~220 PPI, 65K colours)

4 x tactile buttons

RGB LED

Qw/ST (Qwiic/STEMMA QT) connector

Breakout Garden / I2C header

Pre-soldered socket header for attaching to Raspberry Pi

Compatible with all models of Raspberry Pi with a 40 pin header.

Fully assembled

No soldering required (as long as your Pi has header pins attached).

Dimensions: approx 65.5mm x 35mm x 9mm (W x H x D, includes header and display). With a Pi Zero attached with standoffs, the total depth is 17mm.

Screen usable area: 40.8mm x 30.6mm (L x W)

Pinout

Schematic

Dimensional drawing

Display HAT Mini Python library

ST7789 Python library

Includes

Display HAT Mini

2 x 10mm standoffs

Compatible with:

Raspberry Pi 5

Raspberry Pi 4

Raspberry Pi Zero(but needs Male 40-pin 2x20 HAT Header for Pi Zero)

A 128x64 pixel, 2.15" LCD display with snazzy six-zone RGB backlight and six capacitive touch buttons. GFX HAT makes an ideal display and interface for your headless Pi projects.

GFX HAT riffs off the previous Display-O-Tron HAT (now discontinued), but gives you the flexibility of individual pixels, letting you display more complex graphics and real typefaces, while retaining the handy capacitive touch buttons for input/navigation.

Features:

128x64 pixel, 2.15" LCD display

Integrated diffuser/reflector assembly

Six-zone RGB LED backlight

SN3218 LED driver chip (I2C address 0x54)

Six capacitive touch buttons with white LEDs

Microchip CAP1166 capacitive touch/LED driver chip ((I2C address 0x2c)

Compatible with all 40-pin header Raspberry Pi models

Python library

Comes fully assembled

Compatible with:

Raspberry Pi 5

Raspberry Pi 4

A low-energy, high-falutin, electronic paper (ePaper / eInk / EPD) display for your Pi, in black/white!

Inky pHAT's beautiful, high contrast display is ideal for displaying simple graphics and crisply-rendered text and, because it's like paper, it's readable in bright sunlight. You could use Inky pHAT as a cute little clock, display tweets on it, the weather, news headlines, sports scores, and more. It's also ideal for graphing data from remote sensors, CPU load or temperature, or stock prices.

Features:

2.13" EPD display

Inky pHAT pinout

Compatible with all 40-pin header Raspberry Pi models

Python library

Comes fully assembled

Compatible with:

Raspberry Pi 5

Raspberry Pi 4

Raspberry Pi Zero(but needs Male 40-pin 2x20 HAT Header for Pi Zero)

Plug Pirate Audio Line-out for Raspberry Pi into your hi-fi amp or powered speakers, then sit back, relax, and soak in the rich, digital audio. It has a high-quality I2S DAC, high-res colour display, and playback control buttons.

This board is perfect for upgrading an existing hi-fi amp and speakers, or a set of powered monitors, with digital audio from local audio files (MP3, FLAC, etc.) or from streaming services. The DAC on Pirate Audio Line-out gives you crisp 24-bit / 192KHz digital audio through its 3.5mm stereo jack.

Pirate Audio is a range of all-in-one audio boards for Raspberry Pi, with high-quality digital audio, beautifully-crisp IPS displays for album art, tactile buttons for playback control, and our custom Pirate Audio software and installer to make setting it all up a breeze.

Features:

Line-level digital audio (24-bit / 192KHz) over I2S

PCM5100A DAC chip (datasheet)

3.5mm stereo jack

1.3" IPS colour LCD (240x240px) (ST7789 driver)

Four tactile buttons

Mini HAT-format board

Fully-assembled

Compatible with all 40-pin header Raspberry Pi models

Pirate Audio software

Dimensions: 65x30.5x9.5mm

Compatible with:

Raspberry Pi 5

Raspberry Pi 4

Raspberry Pi Zero(but needs Male 40-pin 2x20 HAT Header for Pi Zero)

Unlock a world of possibilities with the Raspberry Pi Pimoroni Explorer's Hat Pro for 40 Pin. Seamlessly integrate sensors, buttons, and LEDs into your Raspberry Pi projects, transforming them into interactive experiences. Whether you're building robots, IoT devices, or custom interfaces, this Hat delivers unparalleled control and functionality. Its compact form factor and easy-to-use design make it the ideal choice for makers of all skill levels. Elevate your Raspberry Pi projects with the Pimoroni Explorer's Hat Pro and explore the endless potential of your creations.

Four buffered 5V tolerant inputs (perfect for Arduino compatibility)

Four powered 5V outputs (up to 500mA total across all four channels)

Four capacitive touch pads (labelled 1, 2, 3, 4)

Four capacitive crocodile clip pads (labelled 5, 6, 7, 8)

Four coloured LEDs (red, green, blue, and yellow)

Four analog inputs

Two H-bridge motor drivers (up to 200mA per channel; soft PWM control)

A heap of useful (unprotected) 3v3 goodies from the GPIO

A mini breadboard on top!

Explorer HAT Pro pinout

Compatible with all 40-pin header Raspberry Pi models/li>

Python library

Comes fully assembled

Notes
The inputs use a 5-channel buffer that will accept anything from 2V-5V as logic high
Mini breadboard had 170 points, 17x5 per half of the breadboard

Compatible with:

Raspberry Pi 4

Raspberry Pi 5

Raspberry Pi Zero(but needs Male 40-pin 2x20 HAT Header for Pi Zero)

Optimise data transfer speeds on your Raspberry Pi computer with an official Raspberry Pi SD Card. Rigorously tested to ensure optimal performance on Raspberry Pi computers, these Class A2 microSD cards help ensure you get the smoothest user experience from your device.

Documents:

Raspberry Pi SD Cards Offical Product Brief

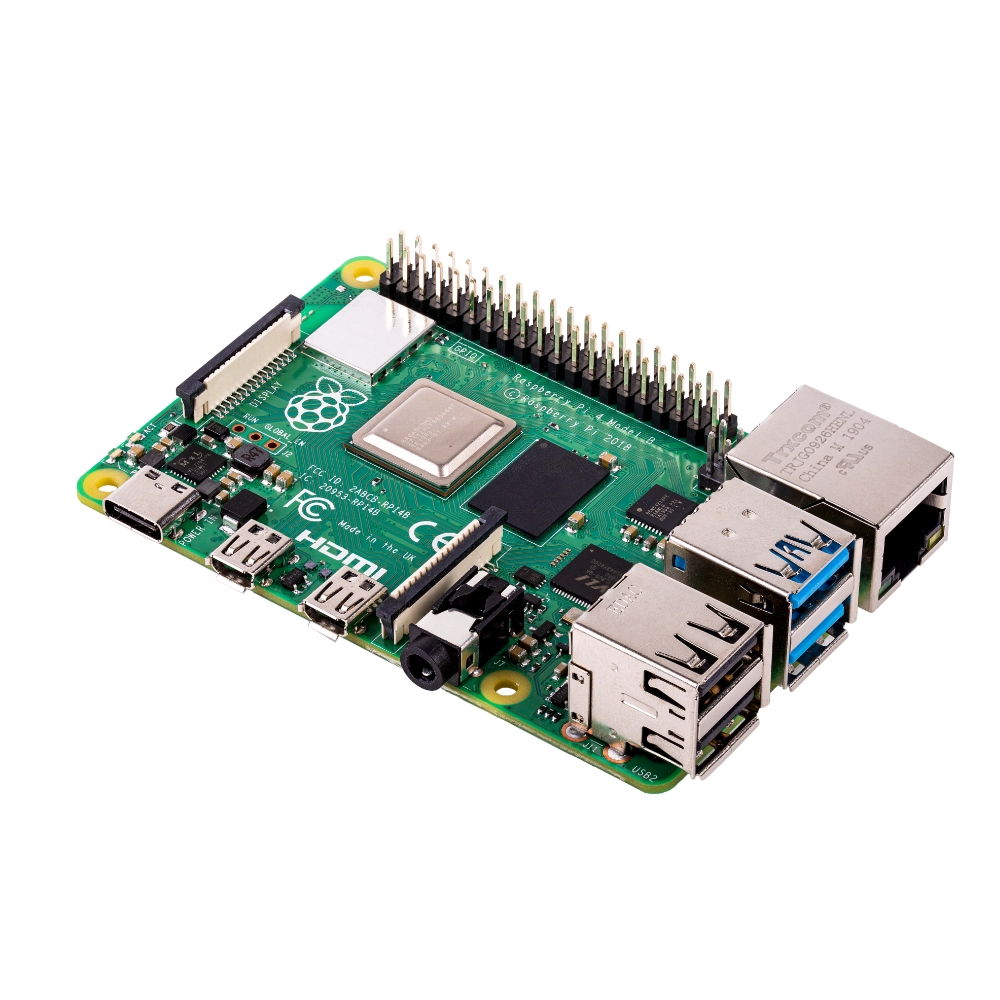

The Raspberry Pi 4 Model B is the best performing single-board computer to date from the Raspberry Pi Foundation that has undergone a huge upgrade in comparison to all previous models. For the first time, the Pi 4 B is available in different memory versions, this model has 2GB with true Gigabit Ethernet, USB-C power, USB 3.0, dual 4k display output and a quad-core CPU to rival the performance of an entry-level desktop PC. It’s a truly powerful and capable computer in a small, affordable package.

The Raspberry Pi 4 has received a performance boost to 1.5GHz with an upgraded quad-core processor.

The fanless, energy-efficient Raspberry Pi runs silently and uses far less power than other computers.

Memory size of 4GB to enable more complicated processes to run efficiently.

Dual micro-HDMI ports enables a dual screen set-up.

Up to 4K resolution video decoding.

Raspberry Pi 4 has upgraded USB capacity: along with two USB 2 ports you'll find two USB 3 ports, which can transfer data up to ten times faster.

Bluetooth 5.0 and WiFi - an improvement on the previous Bluetooth 4.2 on the Pi 3 B+

Raspberry Pi 4 comes with Gigabit Ethernet, along with onboard wireless networking and Bluetooth.

Power is supplied via USB-C – Raspberry Pi 3 was powered via micro-USB at 5.1v

The Raspberry Pi 4 Model B is the best performing single-board computer to date from the Raspberry Pi Foundation that has undergone a huge upgrade in comparison to all previous models. For the first time, the Pi 4 B is available in different memory versions, this model has 8GB with true Gigabit Ethernet, USB-C power, USB 3.0, dual 4k display output and a quad-core CPU to rival the performance of an entry-level desktop PC. It’s a truly powerful and capable computer in a small, affordable package.

The Raspberry Pi 4 has received a performance boost to 1.5GHz with an upgraded quad-core processor.

The fanless, energy-efficient Raspberry Pi runs silently and uses far less power than other computers.

Memory size of 4GB to enable more complicated processes to run efficiently.

Dual micro-HDMI ports enables a dual screen set-up.

Up to 4K resolution video decoding.

Raspberry Pi 4 has upgraded USB capacity: along with two USB 2 ports you'll find two USB 3 ports, which can transfer data up to ten times faster.

Bluetooth 5.0 and WiFi - an improvement on the previous Bluetooth 4.2 on the Pi 3 B+

Raspberry Pi 4 comes with Gigabit Ethernet, along with onboard wireless networking and Bluetooth.

Power is supplied via USB-C – Raspberry Pi 3 was powered via micro-USB at 5.1v

The Raspberry Pi 400 kit is a complete personal computer built into a compact keyboard, with everything you need in the box (minus a monitor or TV)! It’s ideal for learning to code using the Raspberry Pi OS desktop environment and can also be used for a wide range of other activities such as surfing the web, creating and editing documents, watching videos and more!

The Pi400 shares the same great performance as the Raspberry Pi 4 but with the 64-bit CPU clocked to a whopping 1.8GHz thanks to the large internal heatsink. This sits alongside 4GB RAM, dual-band wireless networking, dual-display output and 4K video playback.

The familiar 40-pin GPIO pins are located at the rear of the keyboard for wiring up electronics projects, alongside two USB 3.0 ports and a USB 2.0 port. There's even an on/off power option via the F10 key (for full power disconnection, grab a USB-C on/off switch cable).

The Raspberry Pi 400 kit which includes everything you need to get started in the box (minus a monitor).

The Raspberry Pi 400 keyboard

An Official Raspberry Pi USB-C power supply

An Official Raspberry Pi USB mouse

A 16GB microSD card pre-programmed with Raspberry Pi OS

An Official 1m micro-HDMI cable

Official Beginners Guide

Compatible with:

Raspberry Pi 4
