    Raspberry Pi Offical Micro USB Type B Power Supply

    Manufacturer: Raspberry Pi

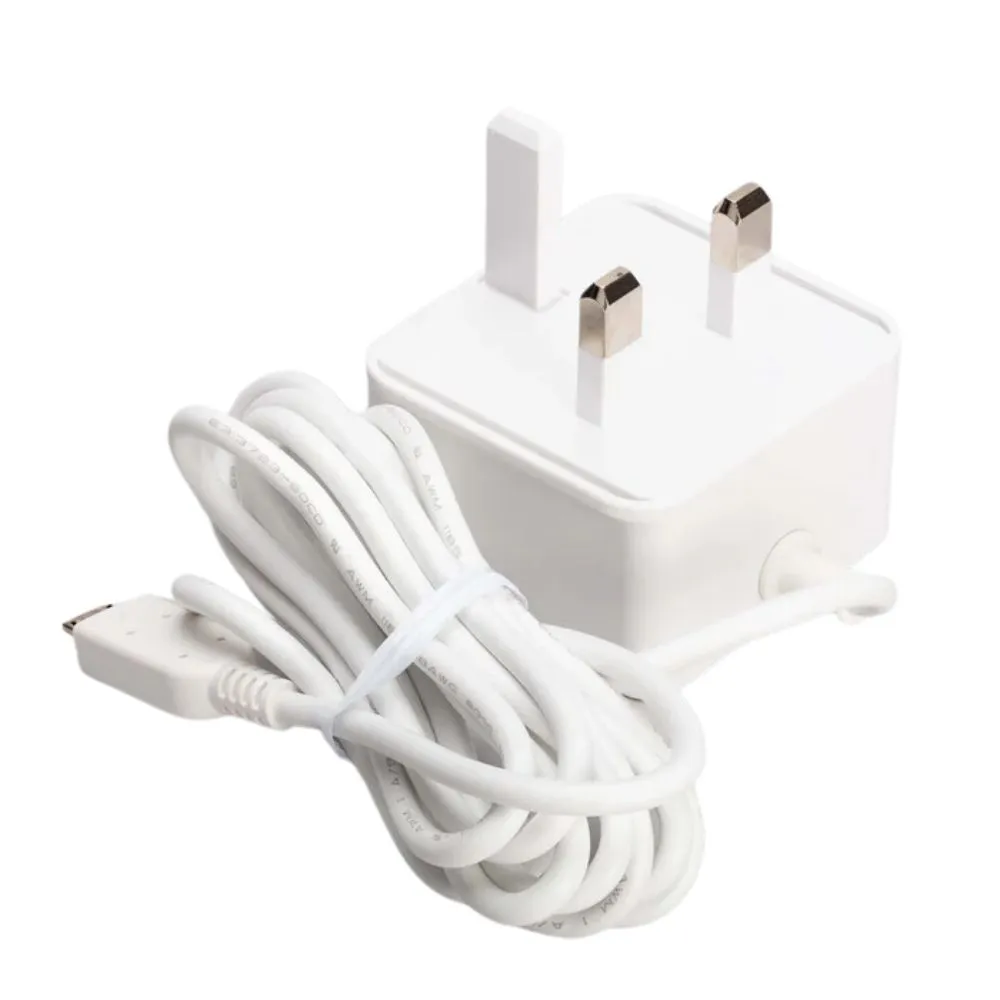

    This is the official UK Raspberry Pi 12.5W Micro USB Power Supply, designed to power any Raspberry Pi computer that features a micro USB connector - including the new Raspberry Pi Zero 2.

    Featuring a 1.5m long cable, this power supply provides 5.1V 2.5A - ideal for all Raspberry Pi boards with a Micro-USB power connection.

    This power supply is for use in the Republic of Ireland / United Kingdom (3-pin UK-style plug) and is compatible with the following Raspberry Pi boards:
  • Raspberry Pi Zero 2
  • Raspberry Pi Zero WH
  • Raspberry Pi Zero W
  • Raspberry Pi Zero 1.3
  • Raspberry Pi 3B/3B+

  • Compatible with:
  • Raspberry Pi Zero
  • SKU: RP SC0625
    Availability: 100 in stock
    €9.15
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Specification

    Format

    UK 3-pin power supply

    Micro-USB

    Output

    Output voltage: +5.1V DC

    Minimum load current: 0.0A

    Nominal load current: 2.5A

    Maximum power: 12.5W

    Load regulation: ±5%

    Line regulation: ±2%

    Ripple & noise: 120mVp-p

    Rise time: 100ms maximum to regulation limits for DC outputs

    Turn-on delay: 3000ms maximum at nominal input AC voltage and full load

    Protection: Short circuit protection

    Overcurrent protection

    Efficiency: 80.73% minimum (output current from 100%, 75%, 50%, 25%)

    Output cable: 1.5m 18AWG

    Output connector: micro USB

    Input

    Voltage range: 100–240Vac (rated)

    96–264Vac (operating)

    Frequency: 50/60Hz ±3Hz

    Current: 0.5A maximum

    Power consumption (no load): 0.075W maximum

    Operating ambient temperature 0–40°C

    Inrush current: No damage shall occur and the input fuse shall not blow

    Compliance: For local and regional product approvals, please visit pip.raspberrypi.com

    *
    *
    *
