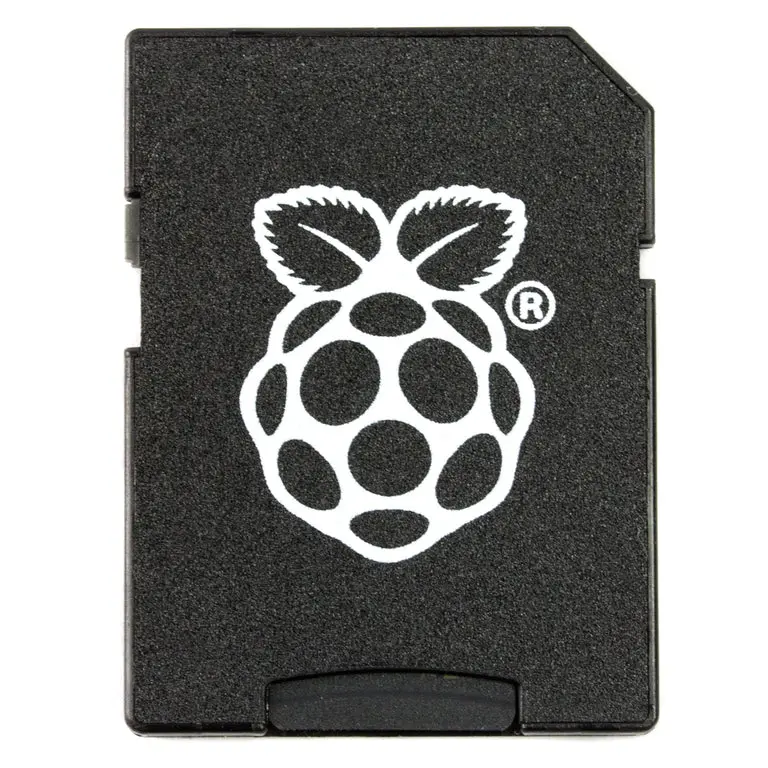

Raspberry Pi Official MicroSD Card (with Raspberry Pi OS)

The Raspberry Pi 4 Model B is the best performing single-board computer to date from the Raspberry Pi Foundation that has undergone a huge upgrade in comparison to all previous models. For the first time, the Pi 4 B is available in different memory versions, this model has 4GB with true Gigabit Ethernet, USB-C power, USB 3.0, dual 4k display output and a quad-core CPU to rival the performance of an entry-level desktop PC. It’s a truly powerful and capable computer in a small, affordable package.

The Raspberry Pi 4 has received a performance boost to 1.5GHz with an upgraded quad-core processor.

The fanless, energy-efficient Raspberry Pi runs silently and uses far less power than other computers.

Memory size of 4GB to enable more complicated processes to run efficiently.

Dual micro-HDMI ports enables a dual screen set-up.

Up to 4K resolution video decoding.

Raspberry Pi 4 has upgraded USB capacity: along with two USB 2 ports you'll find two USB 3 ports, which can transfer data up to ten times faster.

Bluetooth 5.0 and WiFi - an improvement on the previous Bluetooth 4.2 on the Pi 3 B+

Raspberry Pi 4 comes with Gigabit Ethernet, along with onboard wireless networking and Bluetooth.

Power is supplied via USB-C – Raspberry Pi 3 was powered via micro-USB at 5.1v

Everything you need to get up and running with the new Raspberry Pi 4! This kit includes a Raspberry Pi 4 (8GB model), 16GB MicroSD card with NOOBS software, colour coded HDMI lead, case and USB-C power supply.

Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

8GB LPDDR4-2400 SDRAM

2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE

True Gigabit Ethernet

2x USB 3.0 ports, 2x USB 2.0 Ports

Fully backwards compatible 40-pin GPIO header

2x Micro HDMI ports supporting up to 4K 60Hz video resolution

2-lane MIPI DSI/CSI ports for camera and display

4-pole stereo audio and composite video port

MicroSD card slot for loading operating system and data storage

Requires 5.1V, 3A power via USB-C or GPIO. Colour coded micro HDMI lead, case and 3A power supply included

Applications: Embedded Design ; Development, Electronics Design, Hobby ; Education, Communications ; Networking, Consumer Electronics, IoT (Internet of Things)

Contents: Raspberry Pi 4 B, case, 3A USB-C power supply, 1m HDMI cable, 16GB MicroSD card with NOOBS and getting started booklet

Resources :https://projects.raspberrypi.org/en

Raspberry Pi 400 featuring a quad-core 64-bit processor, wireless networking, dual-display output and 4K video playback, Raspberry Pi 400 is a complete personal computer, built into a compact keyboard. Inside is a modified Pi4-4GB mated to a huge heat sink for excellent passive cooling! All I/O connectors are along the back of the keyboard, including GPIO. Raspberry Pi 400 is ideal for surfing the web, creating and editing documents, watching videos, and learning to program using the Raspberry Pi OS desktop environment. It's also an outstanding value as it includes the Pi4 and keyboard that also functions as a case.

UK keyboard layout

Broadcom BCM2711 quad-core Cortex-A72(ARM v8) 64-bit SoC at 1.8GHz

Dual-band IEEE 802.11b/g/n/ac, wireless LAN, BLE, Gigabit Ethernet, 2 x USB 3.0 ; 1 x USB 2.0 ports

Horizontal 40-pin GPIO header

2 x micro HDMI ports (supports up to 4Kp60)

MicroSD card slot for operating system and data storage

5V DC via USB connector

Dimension is 286mm x 122mm x 23mm (maximum)

Contents:

Raspberry Pi400 integrated keyboard/Pi4-4GB

UK keyboard layout

16GB microSD card

Pre-programmed with Raspberry Pi OS

Raspberry Pi power supply(UK)

Raspberry Pi mouse

Micro-HDMI to HDMI-A cable( 1m white)

Official Raspberry Pi beginner's guide

The Raspberry Pi 400 features everything in one fully-enclosed compact unit, removing the need for multiple components, whilst delivering a clock speed of 1.8GHz, higher than other Raspberry Pi boards on the market.

1.8GHz Quad core ARM Cortex-A72 CPU

4GB LPDDR4-3200 DRAM

VideoCore VI graphics (OpenGL ES 3.1, Vulkan)

4K UHD @60Hz HEVC decoding

True Gigabit Ethernet

2x USB 3.0 and 1x USB 2.0 ports

2x Micro HDMI ports (1x 4K @60Hz or 2x 4K @30Hz)

USB-C for input power, supporting 5V 3A operation

Raspberry Pi-compatible 40-pin horizontal GPIO connector

Kensington lock

The Raspberry Pi 4 Model B is the best performing single-board computer to date from the Raspberry Pi Foundation that has undergone a huge upgrade in comparison to all previous models. For the first time, the Pi 4 B is available in different memory versions up to 8GB with true Gigabit Ethernet, USB-C power, USB 3.0, dual 4k display output and a quad-core CPU to rival the performance of an entry-level desktop PC. It’s a truly powerful and capable computer in a small, affordable package.

The Raspberry Pi 4 has received a performance boost to 1.5GHz with an upgraded quad-core processor.

The fanless, energy-efficient Raspberry Pi runs silently and uses far less power than other computers.

There is now a memory size of 8GB to enable more complicated processes to run efficiently.

Dual micro-HDMI ports enables a dual screen set-up.

Up to 4K resolution video decoding.

Raspberry Pi 4 has upgraded USB capacity: along with two USB 2 ports you'll find two USB 3 ports, which can transfer data up to ten times faster.

Bluetooth 5.0 and WiFi - an improvement on the previous Bluetooth 4.2 on the Pi 3 B+

Raspberry Pi 4 comes with Gigabit Ethernet, along with onboard wireless networking and Bluetooth.

Power is supplied via USB-C – Raspberry Pi 3 was powered via micro-USB at 5.1v

The official Raspberry Pi 4 case, designed by the Raspberry Pi Foundation to be the ideal choice for the Raspberry Pi 4.

Optional clip-on lid provides protection, but can be removed if you are using a HAT

All primary ports (including micro-SD) accessible

Snug and secure fit protects your Pi 4 while looking great

Anti-slip feet keeps your Raspberry Pi 4 stable

Power and activity lights still visible through the end of the case

The Raspberry Pi Camera Module v2 is a high quality 8 megapixel Sony IMX219 image sensor custom designed add-on board for Raspberry Pi, featuring a fixed focus lens. It's capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.

It attaches to Pi by way of one of the small sockets on the board upper surface and uses the dedicated CSI interface, designed especially for interfacing to cameras. The board itself is tiny, at around 25mm x 23mm x 9mm. It also weighs just over 3g, making it perfect for mobile or other applications where size and weight are important. It connects to Raspberry Pi by way of a short ribbon cable.

8 megapixel camera capable of taking photographs of 3280x2464 pixels

Capture video at 1080p30, 720p60 and 640x480p90 resolutions

All software is supported within the latest version of Raspbian Operating System

Applications: CCTV security camera, motion detection, time lapse photography

Discover the Kitronik Mini Prototype Breadboard – the ultimate tool for electronics prototyping. With its compact size and versatile design, this breadboard provides a convenient platform to bring your ideas to life. It offers 170 tie points, a self-adhesive backing, and a user-friendly layout, making circuit assembly a breeze.

Whether you're a beginner or a seasoned maker, this durable and expandable breadboard is your go-to solution for unleashing your creativity in electronics prototyping. Explore the endless possibilities with the Kitronik Mini Prototype Breadboard today!

Components and wires can be placed into the board and the circuit built and tested without soldering.

Multiple boards can be interconnected.

This board has 170 tie points (components shown are not included).

Size: 47mm x 35mm

Unlock a world of possibilities with the Raspberry Pi Pimoroni Explorer's Hat Pro for 40 Pin. Seamlessly integrate sensors, buttons, and LEDs into your Raspberry Pi projects, transforming them into interactive experiences. Whether you're building robots, IoT devices, or custom interfaces, this Hat delivers unparalleled control and functionality. Its compact form factor and easy-to-use design make it the ideal choice for makers of all skill levels. Elevate your Raspberry Pi projects with the Pimoroni Explorer's Hat Pro and explore the endless potential of your creations.

Four buffered 5V tolerant inputs (perfect for Arduino compatibility)

Four powered 5V outputs (up to 500mA total across all four channels)

Four capacitive touch pads (labelled 1, 2, 3, 4)

Four capacitive crocodile clip pads (labelled 5, 6, 7, 8)

Four coloured LEDs (red, green, blue, and yellow)

Four analog inputs

Two H-bridge motor drivers (up to 200mA per channel; soft PWM control)

A heap of useful (unprotected) 3v3 goodies from the GPIO

A mini breadboard on top!

Explorer HAT Pro pinout

Compatible with all 40-pin header Raspberry Pi models/li>

Python library

Comes fully assembled

Notes
The inputs use a 5-channel buffer that will accept anything from 2V-5V as logic high
Mini breadboard had 170 points, 17x5 per half of the breadboard

The Raspberry Pi Sense HAT is attached on top of the Raspberry Pi via the 40 GPIO pins. The Sense HAT has several integrated circuit based sensors that can be used for many different types of experiments, applications, and even games.

Gyroscope - angular rate sensor: ±245/500/2000dps

Accelerometer - Linear acceleration sensor: ±-2/4/8/16 g

Magnetometer - Magnetic Sensor: ± 4/8/12/16 gauss

Barometer: 260 - 1260 hPa absolute range

Temperature sensor: to ± 2 degC in the 0-65 degC

Relative Humidity sensor

8x8 LED matrix display

Small 5 button joystick
