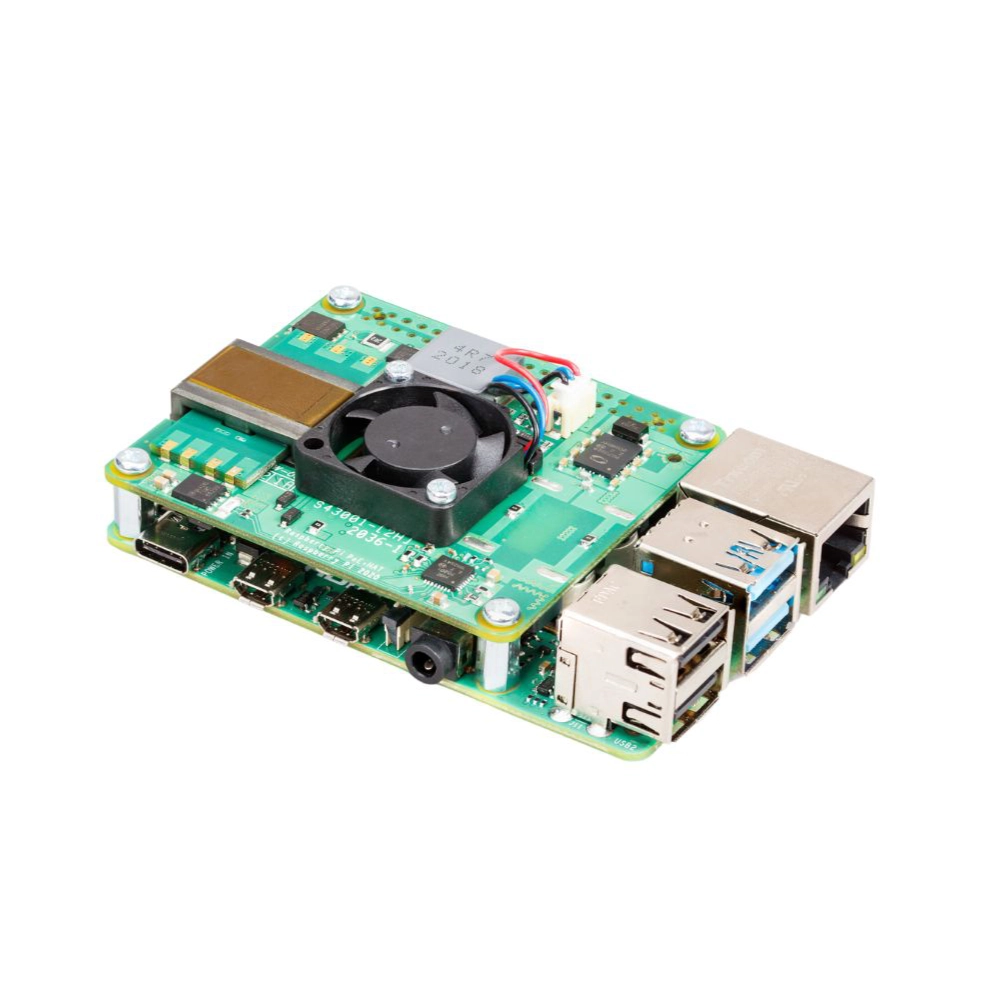

Raspberry Pi POE+ HAT

The Raspberry Pi Power over Ethernet HAT is a small accessory for the Raspberry Pi computer. It can only be used with the Raspberry Pi 4 Model B (launched June 2019) and the Raspberry Pi 3 Model B+ (launched March 2018). The PoE HAT allows you to power your Raspberry Pi using Power over Ethernet–enabled networks; for this product to be used, the network it is connected to needs to have power-sourcing equipment installed.

Supplied with this product:

Raspberry Pi PoE HAT

Mechanical spacers

Other hardware needed:

A Raspberry Pi 4 Model B or Raspberry Pi 3 Model B+

An Ethernet cable

Power-sourcing equipment for a 802.3af Power over Ethernet network

SKU: RP SC1022

Availability: 27 in stock

€23.75

Qty:

i h

Overview

Specification Standard: IEEE 802.3at-2003 PoE Input voltage: 37–57 V DC, Class 4 device Output power: 5 V DC/4 A Cooling: 25 mm × 25 mm brushless fan delivering 2.2 CFM for processor cooling Features: Fully isolated switched-mode power supply Fan control: Operating temperature: 0 °C to +50 °C Production lifetime: The Raspberry Pi PoE+ HAT will remain in production until at least January 2027 Compliance: For a full list of local and regional product approvals, please visit www.raspberrypi.org/compliance
