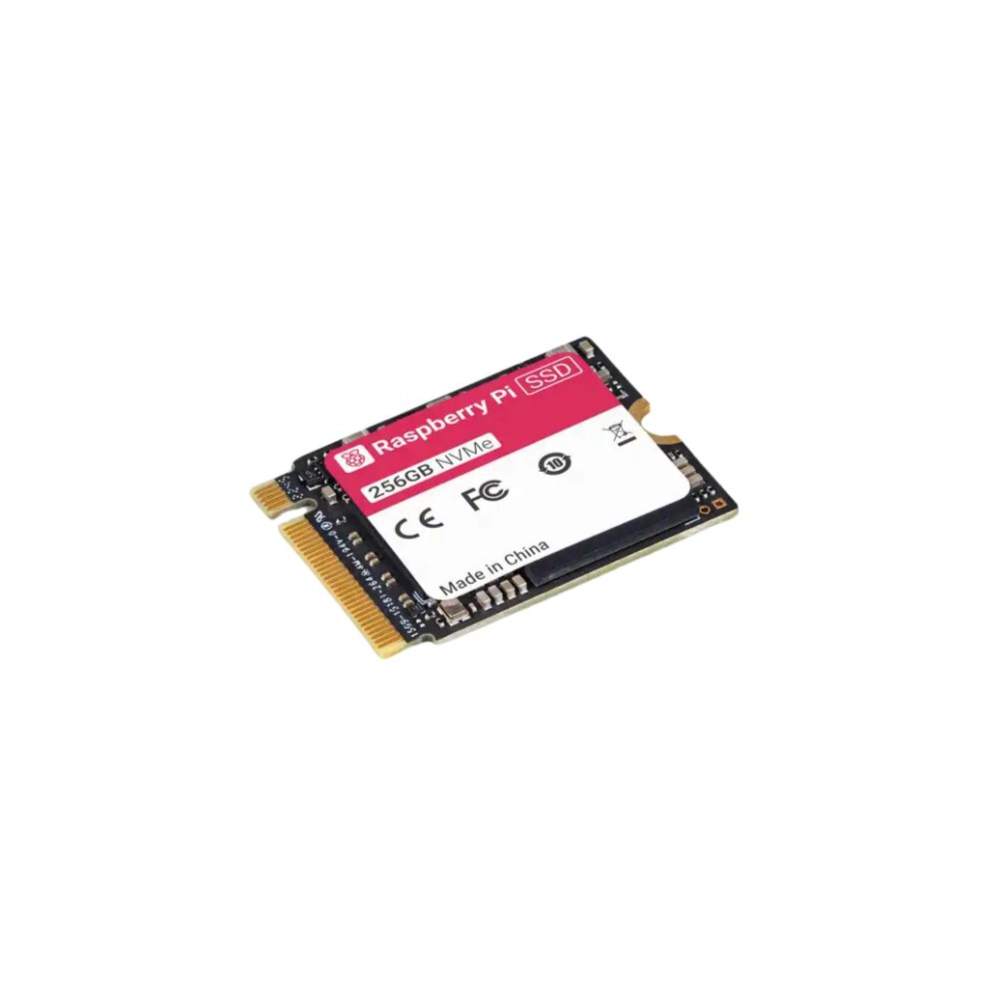

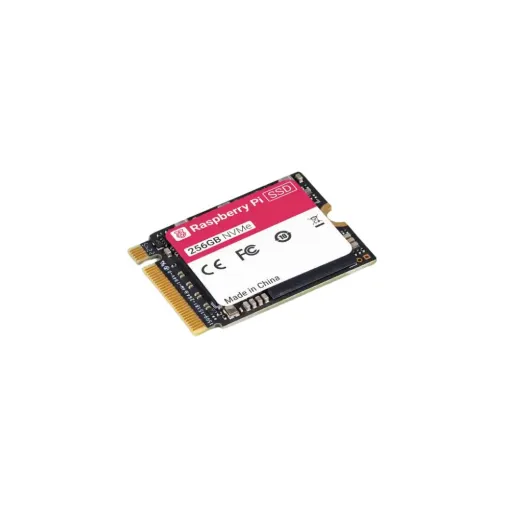

Raspberry Pi Raspberry Pi SSD 256GB

The Raspberry Pi M.2 HAT+ enables you to connect M.2 peripherals such as NVMe drives and AI accelerators to Raspberry Pi 5’s PCIe 2.0 interface, supporting fast (up to 500 MB/s) data transfer to and from NVMe drives and other PCIe accessories.

Raspberry Pi 5’s single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5mm- pitch FPC connector; the M.2 HAT+ M Key is a mechanical adapter board that converts between this connector and a subset of the M.2 standard. It supports devices that have the M.2 M key edge connector, in the 2230 and 2242 form factors. It is capable of supplying up to 3A to connected M.2 devices.

The Raspberry Pi M.2 HAT+ conforms to the Raspberry Pi HAT+ specification and is autodetected by the latest Raspberry Pi software/firmware. It is supplied with a 16mm stacking header and threaded spacers, so it can be fitted to a Raspberry Pi 5 with the Raspberry Pi Active Cooler in place.

The Raspberry Pi Active Cooler provides an alternative cooling solution for users who wish to use their Raspberry Pi 5 under sustained heavy load without a case.

The Active Cooler combines a large metal heatsink with a high-quality variable-speed blower fan, powered and controlled via the fan connector on the Raspberry Pi 5, attached to the board via sprung pins into the dedicated pair of mounting holes.

As the heat from the Pi 5 CPU spreads across the heatsink body and fins, the blower fan pushes cool air over them to keep your Raspberry Pi 5 running at optimal thermal levels. The cooler uses thermal pads to create a solid thermal connection with the Raspberry Pi 5.

The fan is software-controlled, allowing it to remain off (and therefore silent) until temperatures reach the specified threshold.

Features

Compatible with Raspberry Pi 5

Large metal 'finned' heatsink combined with a high-quality blower fan

Fan fitting compatible with the Raspberry Pi 5 fan connector

Variable speed fan (software/temperature controlled)

Uses the Raspberry Pi 5 heatsink mount holes

Thermal pads included (pre-fitted)

Raspberry Pi not included

Compatible with:

Raspberry Pi 5

Add super-fast storage to your Raspberry Pi 5 allowing for lightning fast boots, NAS use, and snappy applications! NVMe Base is a PCIe extension board for Raspberry Pi 5. Simply populate it with an M-key NVMe SSD (2230 to 2280 sizes supported) and mount it under your Pi for a compact and fast storage solution - It even comes with rubber feet!

It's the perfect solution for turning your Raspberry Pi 5 into a file server, media centre, reverse proxy, etc. - really any task that benefits from large amounts of fast storage, especially with random high operations per second (IOPS) workloads. In short it's a game changer!

NVMe base follows the new "PIP" design guidelines provided by Raspberry Pi ensuring that it will be easy to use and be supported long term by updates to Raspberry Pi OS - though it is very early days and things are improving rapidly there!

Base Kit

NVMe Base PCB with M.2 Slot (M-Key)

'PCIe Pipe' Flat Flex Cable

4x Rubber feet

M2 bolt and 2x nuts for SSD mounting

4x 7mm M2.5 standoffs for base mounting

8x short M2.5 bolts for base mounting

4x long M2.5 bolts for 'pass-thru' mounting with a HAT

Compatible with:

Raspberry Pi 5

SSD card for use is the Verbatim Vi3000 PCIe NVMe M.2 SSD 256GB

The Raspberry Pi Pico 2 is a faster, more capable microcontroller board powered by the RP2350 chip. Featuring dual-core performance, expanded memory and built-in USB support, it’s the perfect choice for beginners, makers and classroom projects.
