    Raspberry Pi Zero 2 W

    Manufacturer: Raspberry Pi

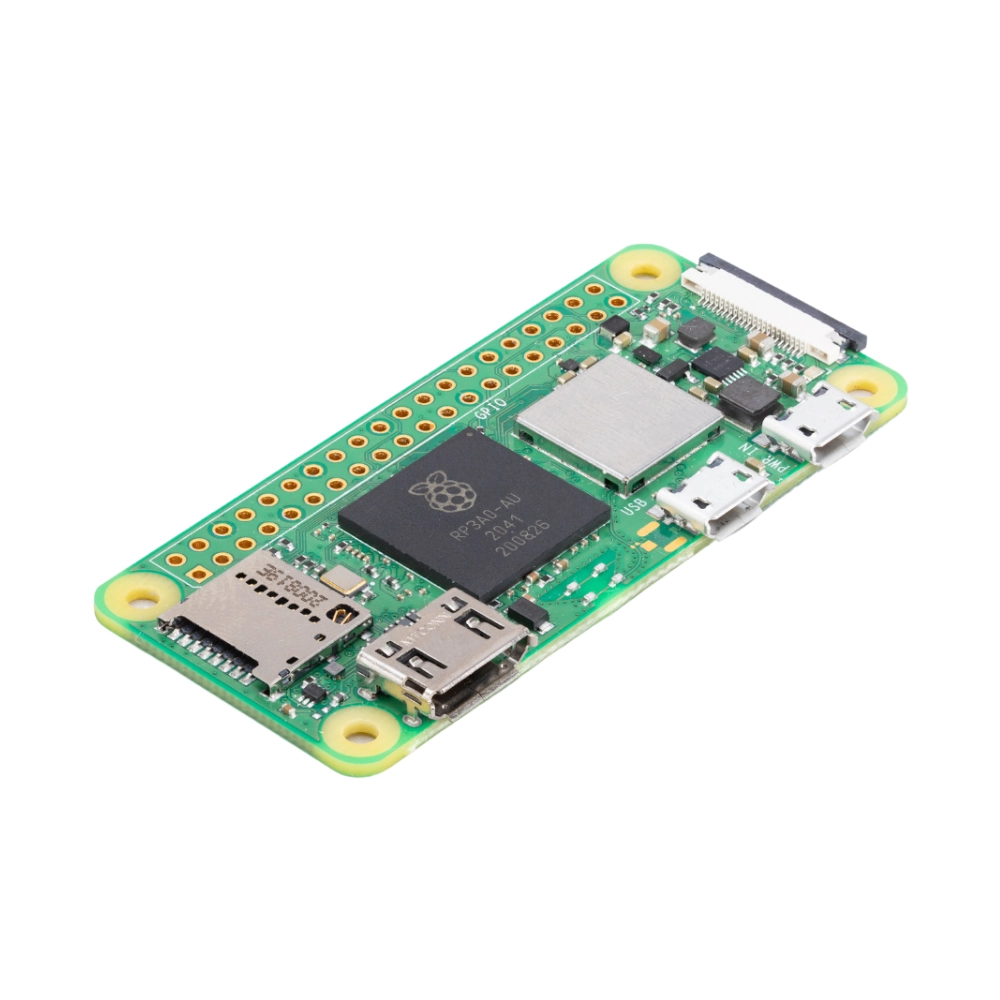

    The Raspberry Pi Zero 2 W is the latest board in the Raspberry Pi Zero family, with a quad-core processor offering a 40% increase in single-threaded performance and 5x times more multi-threaded performance than the previous single-core Raspberry Pi Zero W! The successor to the breakthrough Zero W, Raspberry Pi Zero 2 W is a drop-in replacement for the original board, with the same form factor, connectors and mounting holes. Perfect for a project upgrade!

    The Raspberry Pi Zero 2 W incorporates a quad-core 64-bit Arm Cortex-A53 CPU clocked at 1GHz. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a Broadcom BCM2710A1 die with 512MB of LPDDR2 SDRAM. This upgraded package provides the Raspberry Pi Zero 2 W with its generous increase in performance. Raspberry Pi Zero 2 W continues to offer 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth (now 4.2), along with support for Bluetooth Low Energy (BLE) and modular compliance certification.

    The new Raspberry Pi Zero 2 has a MicroSD card slot for the Raspberry Pi Operating System, a CSI-2 camera connector, a USB On-The-Go (OTG) port and an unpopulated footprint for a HAT-compatible 40-pin GPIO header. Video output is via a mini HDMI port; composite video output is available via the board's test points if needed. The Zero 2 is powered via a micro-USB socket and requires a 5V 2.5A power supply just like previous generations.

    Raspberry Pi Zero 2 Essentials
    To get your Zero 2 up and running you'll need some minimal essential items to complete your new favourite microcomputer. You may also want to check out our great-value Raspberry Pi Zero 2 Starter Kit which includes everything you need and offers great savings vs buying the parts individually.
  • MicroSD card - the 'hard drive' for your Raspberry Pi Zero 2. Our 'NOOBS' cards come pre-loaded ready to select your preferred operating system
  • Mini-HDMI cable - for connecting your Zero's Mini HDMI port to a TV or monitor
  • Power Supply - the Official Raspberry Pi Zero 2 power supply is the ideal way to power your Raspberry Pi Zero 2
  • Micro-USB OTG Adapter - connect full-size USB accessories and peripherals to your Raspberry Pi Zero with this handy Micro-USB OTG adapter cable.
  • SKU: RP SC1146
    Availability: 46 in stock
    €17.25
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Raspberry Pi Zero 2 Specification

    Processor:Broadcom BCM2710A1, quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz)

    Memory: 512MB LPDDR2

    Connectivity:

    2.4GHz IEEE 802.11b/g/n wireless LAN

    Bluetooth 4.2

    Bluetooth Low Energy (BLE)

    Onboard antenna

    1 × USB 2.0 interface with OTG

    HAT-compatible 40-pin I/O header footprint

    MicroSD card slot

    Mini HDMI port

    CSI-2 camera connector

    Video:

    HDMI interface

    Composite video (via test points)

    Multimedia:

    H.264

    MPEG-4 decode (1080p30)

    H.264 encode (1080p30)

    OpenGL ES 1.1, 2.0 graphics

    Input power: 5V DC 2.5A

    Dimensions:65mm × 30mm

    Operating temperature: -20°C to +70°C

    Production lifetime:Raspberry Pi Zero 2 W will remain in production until at least January 2028

    Compliance:For a full list of local and regional product approvals, please visit pip.raspberrypi.com

    Resources

    Raspberry Pi Zero 2 Announcement

    Raspberry Pi Getting Started Guide

    Raspberry Pi Zero 2 Product Brief

    *
    *
    *
