    VEX Pneumatics Kit 1A - Single Acting Cylinder Add-on

    Manufacturer: VEX Robotics
    Kit 1A adds one Cylinder (Air Push, Spring Return) to Kit 1 or Kit 2. Cannot be used without Kit 1 or Kit 2.

    Uses one VEX Controller I/O port per air cylinder
    Reservoir is filled using a standard tie pump fitting
    Single Acting cylinder kit (air push, spring return)
    SKU: VEX 2750275
    Availability: Out of stock
    i h
    Ship to
    Shipping Method
    Estimated Delivery
    No shipping options
    Technical Info
    System Pressure689 kN/m (100 psi)
    Cylinder Bore10mm (0.394in.)
    Cylinder Stroke50mm (1.987in.)
    Maximum Force54 N (12 lb. force)
    Cylinder Strokes45 Strokes from 100 psi to 25 psi
    Valve ControlConnects to one VEX Controller I/O Port
    Tank Volume150 mL (9.153 in.)
    Cylinder LengthSgl.- Compressed - 5.5 in. / Extended - 7.5 in.
    Dbl.- Compressed - 6.125 in. / Extended - 8.25 in.
    Reservoir Weight0.68 lbs.

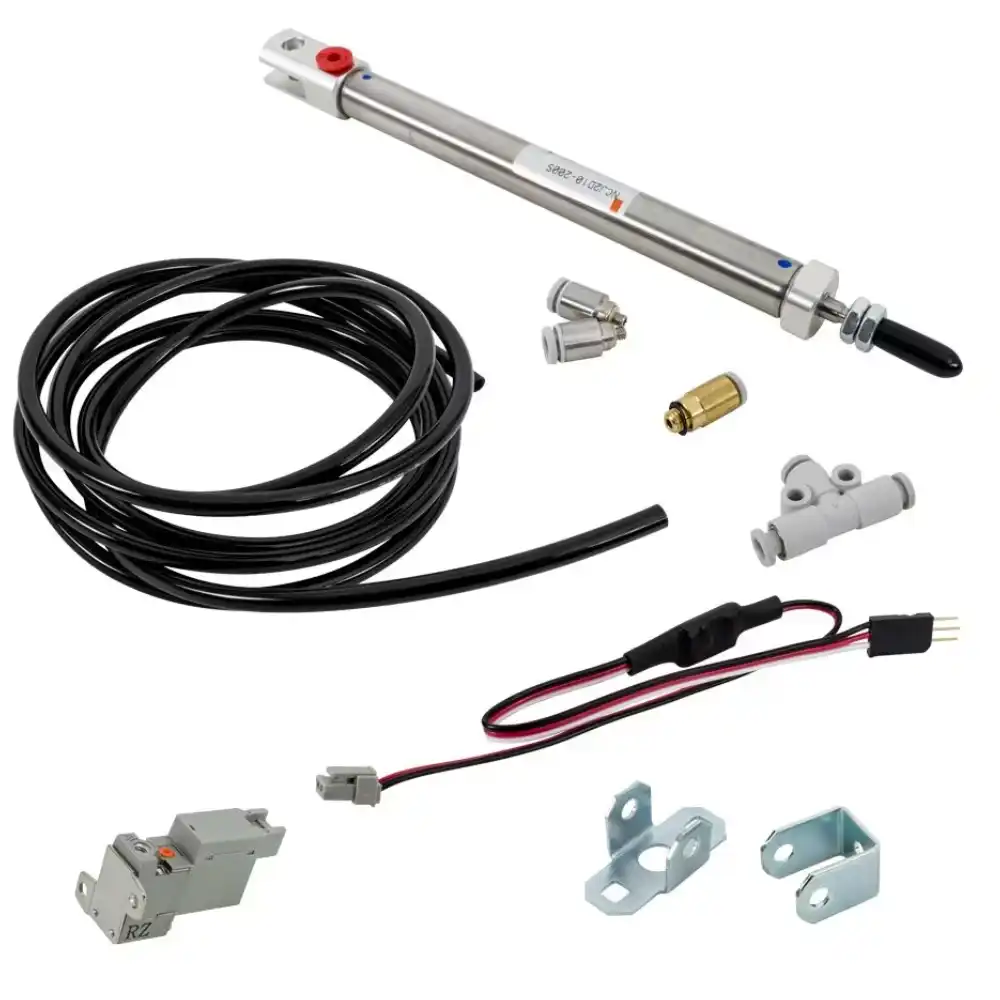

    Kit Contents
    1Solenoid Driver - Cable w/Driver, Connects one VEX I/O Port to one Solenoid
    1"T" Fitting - "T" Fitting for Valves
    1Cylinder, Air Push, Spring Return - Single Acting Spring Return Cylinder 10mm Bore
    1Solenoid, On/Off - 3/2 Solenoid Valve, 5VDC
    2Fitting for Valves - Fitting 4mm Tubing x M3 Thread
    1Fitting for Cylinders - M5 Male Connector for Cylinders
    1Tubing - 4mm X 1696mm Length Tubing
    2Cylinder Rod Pivot - Pivot for the Cylinder Rod
    Products specifications
    VEX Products
    Vex Product TypeKits and Bundles
