    VEX Pneumatics Kit 2 - Double Acting Cylinders

    Manufacturer: VEX Robotics
    Kit 2 is a complete pneumatics add-on for VEX EDR. The cylinders are Double Acting, meaning they use air pressure to extend and retract the piston.

    Uses one VEX EDR Controller I/O port per air cylinder. Reservoir is filled using a standard tie pump

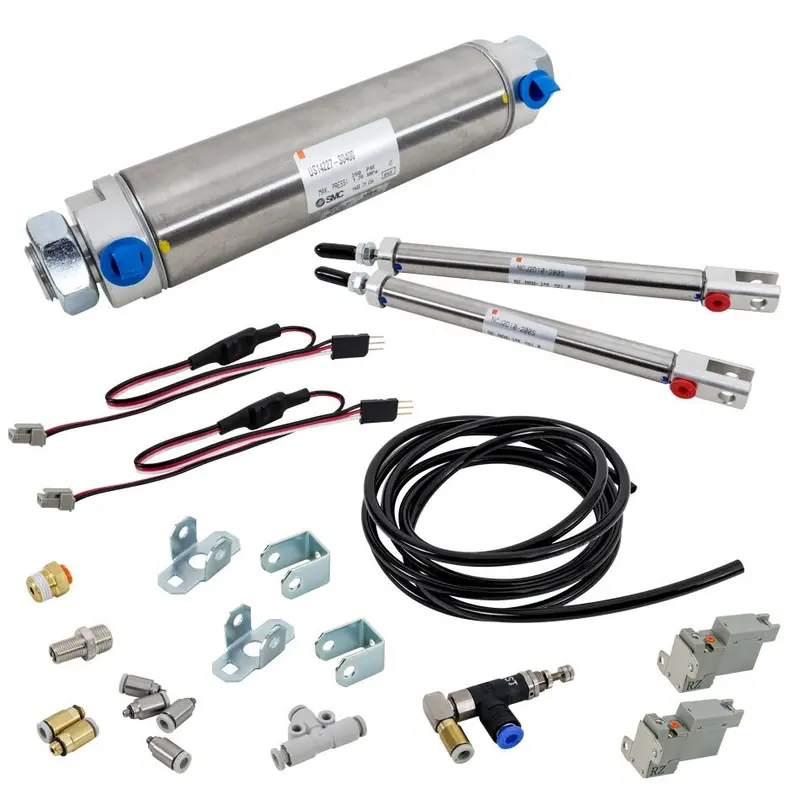

    Kit Includes:
    2x Solenoid Driver - Cable w/Driver, Connects one VEX EDR I/O Port to one Solenoid
    1x Tire Pump Fitting - Shraeder Valve With 4mm Tube Fittings - 8090410075
    1x Reservoir - Reservoir, 1-1/2" X 4", w 1/8"NPT & M5 port - US14227-S0400
    1x On/Off Switch - Finger Valve - VHK3-04F-04F
    1x Pressure Regulator - Mini Regulator w/ 4mm Fittings - A-474-0000005
    1x "T" Fitting - "T" Fitting for Valves - KQ2T04-00 or "-00A"
    2x Cylinder, Bi-directional - Dbl Acting Cylinder 10mm Bore - NCJ2D10-200
    2x Solenoid, Fwd, Reverse - 5/2 Single Solenoid Valve, 5VDC - SYJ3120-SMO-M3-F
    2x Flow Meter - M5 elbow meter out flow control 4mm tubing - AS1201F-M5-04T
    6x Fitting for Valves - Fitting 4mm Tubing x M3 Thread - KJS04-M3 or "-M3G"
    1x Fitting for Reservoir - 1/8 X 4mm Male Connector To Reservoir - KQ2H03-34S or "-34AS"
    2x Fitting for Cylinders - M5 Male Connector for Cylinders - KQ2S04-M5 or "-M5A"
    1x Tubing - 4mm X 1696mm Length Tubing - TUO425B-X81US1696
    2x Cylinder Mount - Mount for Cylinder - CYLINDER-MOUNT
    2x Cylinder Nut - Nut for the Cylinder Mount - CYLINDER-NUT
    2x Cylinder Rod Pivot - Pivot for the Cylinder Rod - CYLINDER-ROD-PIVOT
    SKU: VEX 2750276
    Availability: 1 in stock
    €370.00
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Products specifications
    VEX Products
    Vex Product TypeKits and Bundles
    *
    *
    *
