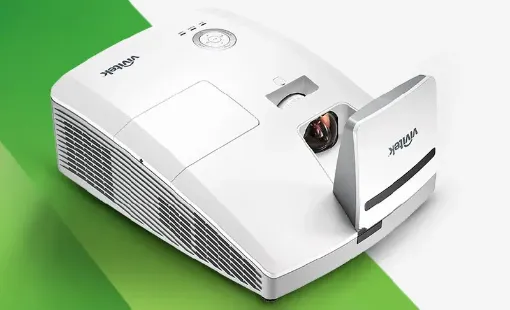

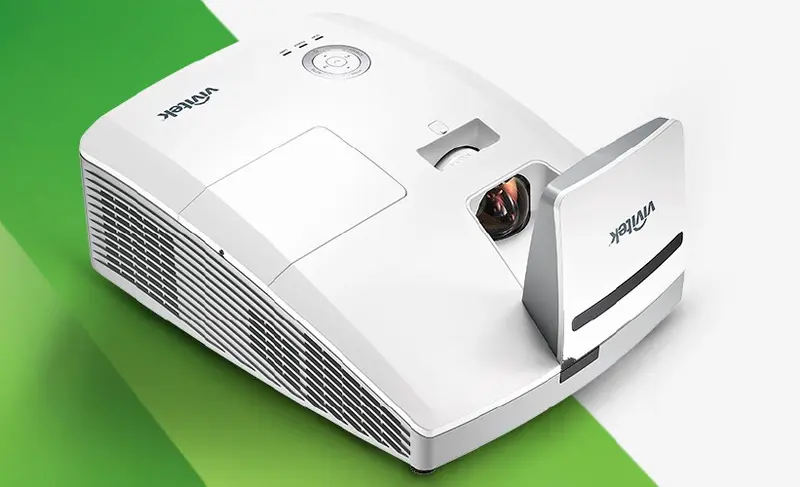

    Vivitek Ultra Short Throw Projector

    Manufacturer: Vivitek
    Ultra short throw lens can make 100 inch projection screen from as little as 44cm away

    The DW770UST is the ultimate ultra-short-throw projector for the education with 3500 lumen of brightness and WXGA resolution . The projector offers a 100 inch diagonal 2.15 metre wide projection image from as little as 44cm away from the screen surface.

    As well as delivering an optimal viewing experience, the DW770UST ensures a high sound quality thanks to in-built 2x10W speakers. For added user convenience, the DW770UST feature integrated network monitoring and management solutions, including those from Crestron® RoomView™, as well as others.
    Availability: In stock
    i h
    Ship to
    Shipping Method
    Estimated Delivery
    No shipping options

    Key features

    • Ultra short throw lens to make 100 inch screen at only 44cm away
    • 3,500 ANSI lumens of brightness, WXGA resolution, and 14,000:1 contrast ratio for clear, crisp and bright projection
    • 2x 10W speakers and microphone input ensure you are clearly heard
    • Long lasting life with up to 12,000 hours lamp-life
    • Eco Friendly and Energy Saving with sleep timer and also auto-power-off when there is no signal input
    • Integrated network monitoring and management solutions including Crestron® RoomView™, and etc.
    • 5 year education warranty
    • Compatible with NovoConnect wireless collaboration solution
    • comes with Vivitek WM-3 Wall mount
    Native ResolutionWXGA (1280 x 800)
    Brightness3500 ANSI Lumens
    Contrast Ratio14,000:1
    Max. Supported ResolutionUHD (3840 x 2160) @60Hz
    Native Aspect Ratio16:10
    Lamp Life and Type6,000 / 12,000 Hours (Normal / Eco. Mode)
    Display TypeSingle chip DLP® Technology by Texas Instruments
    Chip Size0.65” DMD
    Throw Ratio0.35:1
    Image Size (Diagonal)80"- 100"
    Projection Distance283 - 446 mm
    Projection LensF = 2.5, f = 5.1 mm
    Zoom RatioFixed 1x
    Lens Shift RangeLimited Lens Shift Vertical ±1.7%
    Keystone CorrectionVertical: +/- 40°
    Speakers10W x 2
    I/O Connection Ports

    VGA-In (15pin D-Sub) (x1), HDMI (x2), Composite Video, Audio-In (RCA) , Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RJ45, RS-232, 3D-Sync, USB A (Power Only), USB B (Service), Microphone (Mini-Jack)

    Dimensions (W x D x H)287.7 x 374.5 x 122.6 mm (not including height of mirror )
    Weight5 kg
    Noise Level33dB / 29dB (Normal / Eco. Mode)
    3D Ready(DLP link, PC+Video)Yes
    Standard AccessoriesVGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
